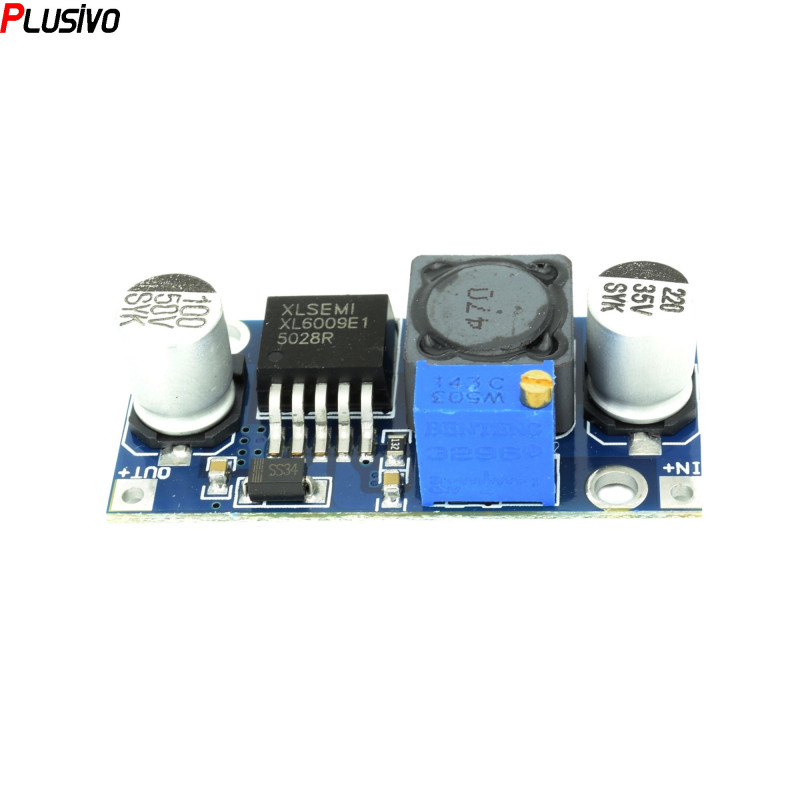

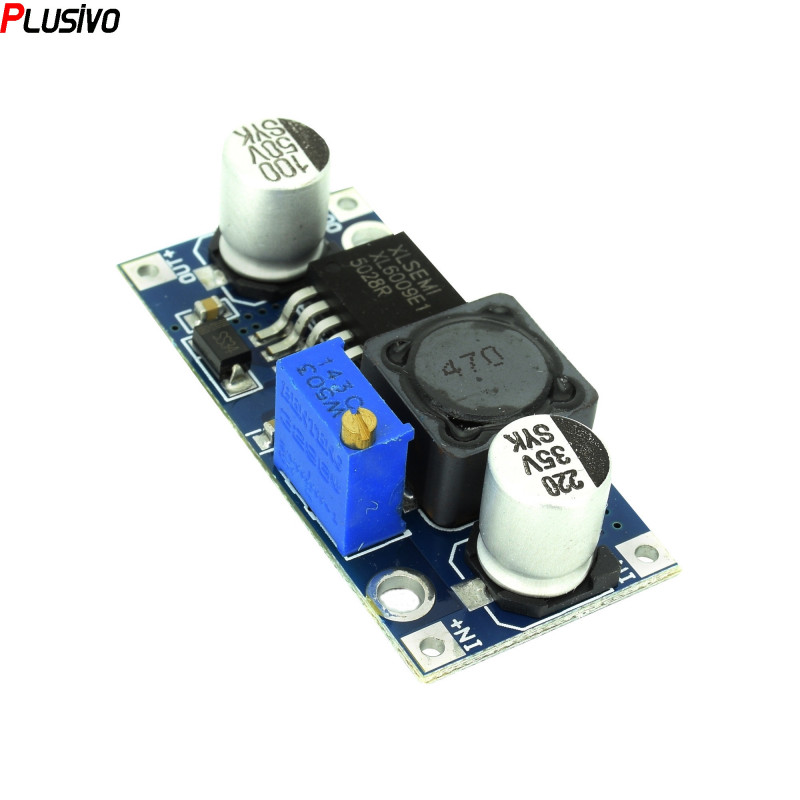

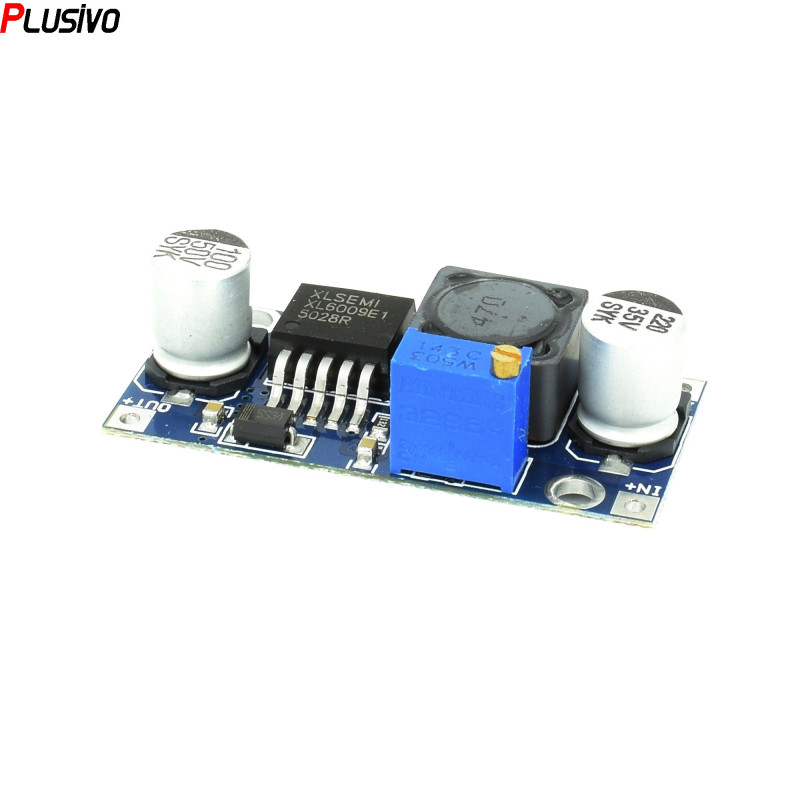

XL6009 DC-DC Boost Module

0104110000000460

New product

This module is very good to lift the tension in your applications. If you have a circuit that works at more voltages and you only have a 5 V source, with this boost source you can get much higher voltages.


See Description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

₱48.00
tax incl.

-₱91.00

₱139.00 tax incl.

More info

Overview


This module is very good to lift the tension in your applications.

If you have a circuit that works at more voltages and you only have a 5 V source, with this boost source you can get much higher voltages.

To work at full capacity, you need to offer a better heat dissipation.

The empty current is only 18 mA. The output voltage can be adjusted from the potentiometer.


Specifications

  • Input voltage: 3 V to 32 V;
  • Output voltage: 5 V to 35 V;
  • Maximum Input Current: 4 A;
  • Operating Frequency: 400 kHz;
  • Maximum efficiency: 94 %;
  • Ripped at output: 50 mV.
  • Dimensions: 43 mm x 21 mm x 14 mm.


Don't delay, buy today.


Add to cart now!

Reviews

Grade
06/15/2021

Simple voltage little step-up / boost module. Turns 5v into 9v/1

They have a MicroUSB connection AND solder pads for the input.

    Grade
    05/05/2021

    It works as described

    Nice packaging and the circuit board works as described.

      Grade
      03/04/2021

      Good value

      They were small boards and were a good value for the cost!

        Grade
        02/16/2021

        Works as expected. Good value.

        Bought these to provide a clean, regulated 24-volt supply to some instrumentation. They work as expected. Once set to 24 volts, this device does so with an input of 7 to 30 volts. I'm very happy

          Grade
          02/13/2021

          Really useful voltage converter!

          I had a project recently where I needed to bump 5V up to 8V to get some small lamps to light brighter. This works really well. I like the 10 turn precision pot that lets you fine tune the output voltage. Great product at a very good price!

            Grade
            02/13/2021

            The compact and lightweight

            It is a very practical compact circuit, I will try them later to turn on an audio amplifier.

              Grade
              12/29/2020

              Stable output with varied input

              Seems to maintain a constant output voltage no matter its input voltage - to within about 0.1V in my experience.

                Grade
                12/10/2020

                A+ SUPER BOOST INCREDIBLY WONDERFUL

                It filled all our expectations as we tested them one by one and the 5 modules worked perfectly raising the voltage more than double the input .... INCREDIBLE! It really does its electronic function very well. . . Nice performance at really good price.

                  Grade
                  08/02/2020

                  Very nice

                  Exactly what you would expect from a boost converter, high efficiency and good build quality.

                    Grade
                    07/05/2020

                    Great stuff

                    They held up. Worked as expected and order came in time.
