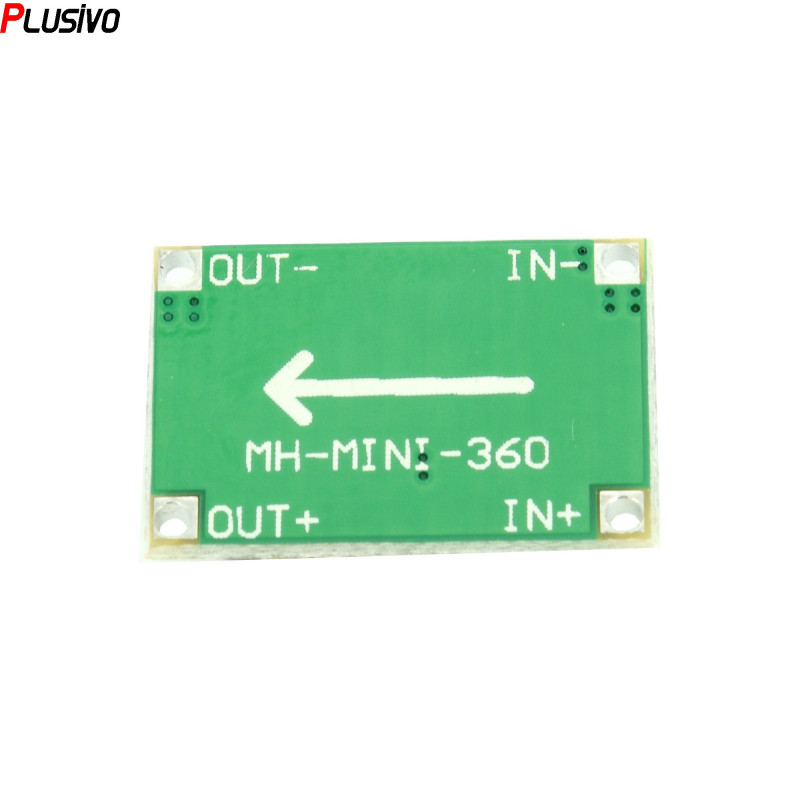

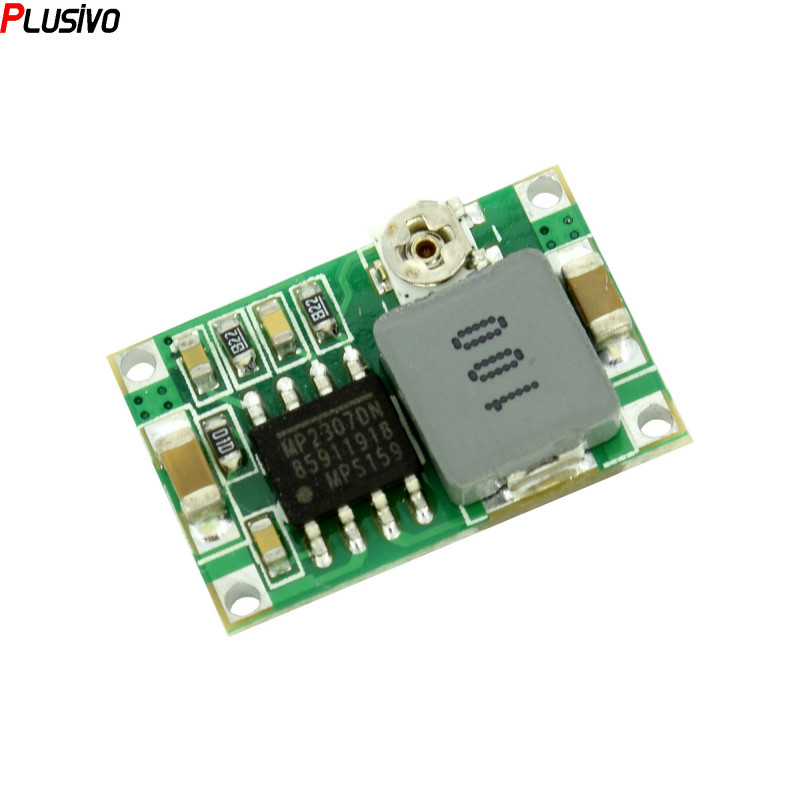

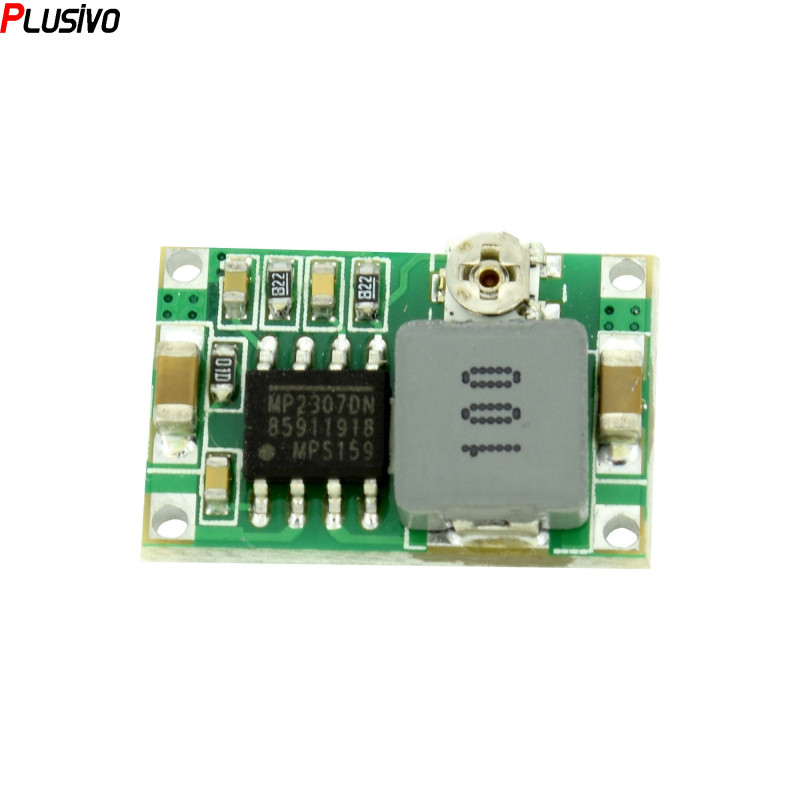

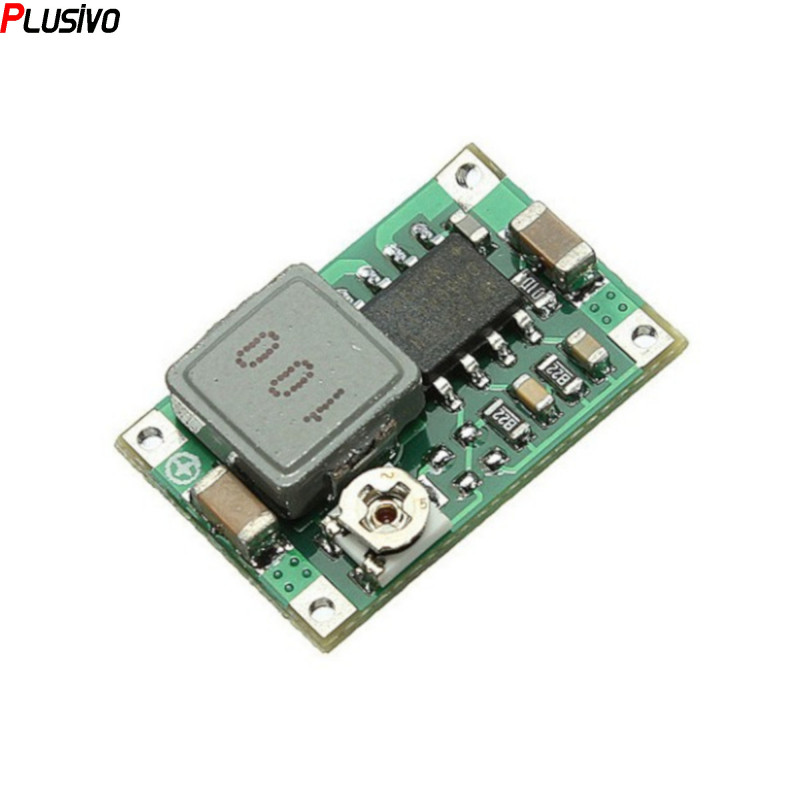

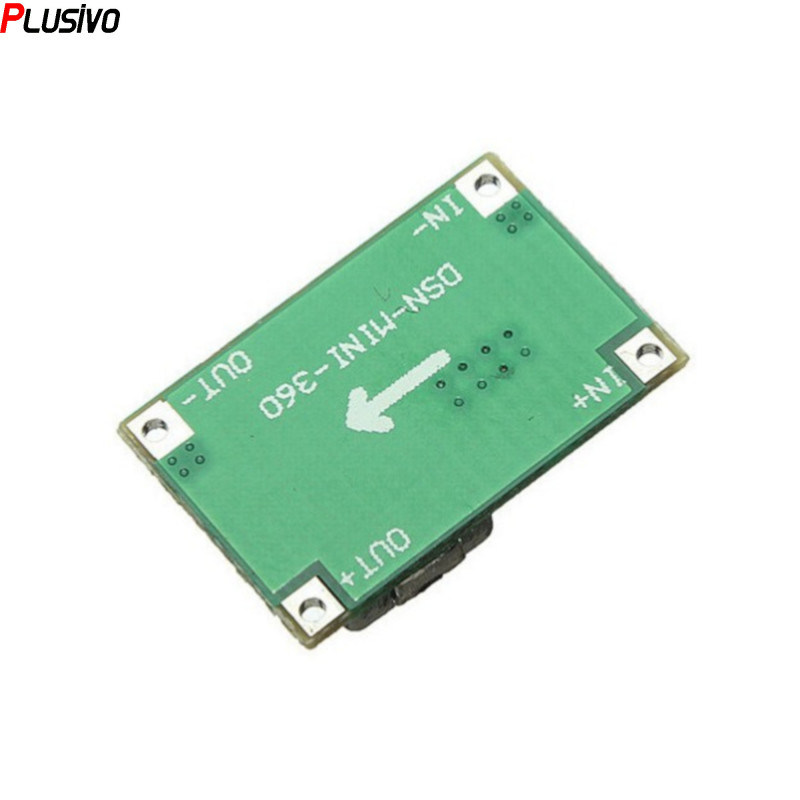

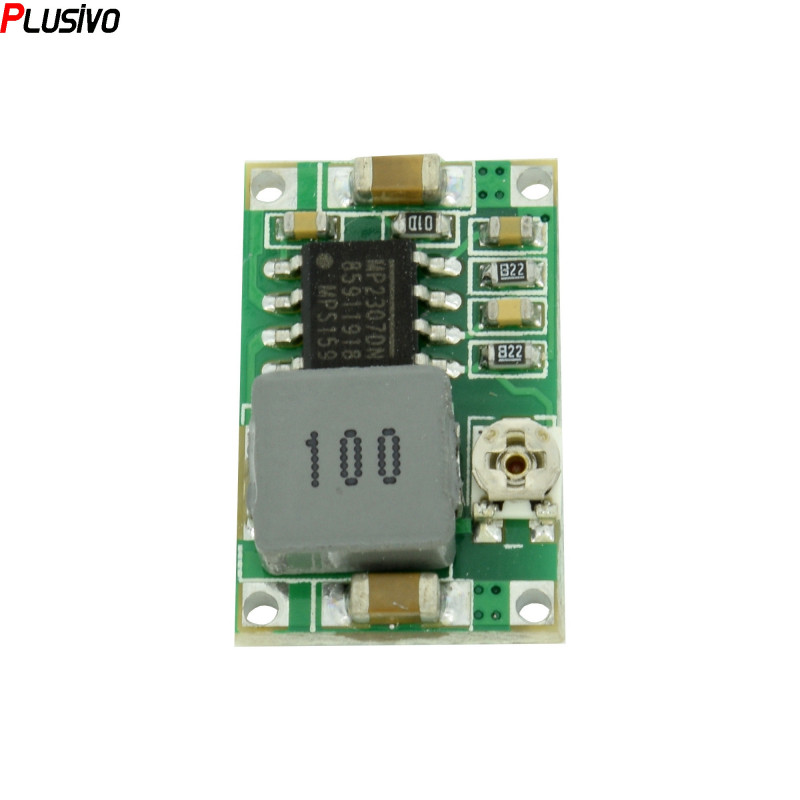

Mini-360 Step Down DC-DC Module

0104110000000705

New product

This mini DC-DC synchronous rectifier buck module is a step-down voltage regulator, which has input range between 4.75 V to 23 V and adjustable output voltage between 1 V to 17 V.


See description for more details about the product.

Add to cart now!

More details

57 Items

₱34.00
tax incl.

-₱35.00

₱69.00 tax incl.

More info

Overview


This is a mini DC-DC synchronous rectifier buck module for flight control car, communication equipment, DIY mobile power, and for your projects power supply.

This miniature DC-DC step-down converter uses an integrally molded power inductor and a synchronous rectifier control chip.


Specifications

  • Model Name: Mini360 (ultra-small DC-DC synchronous rectifier step-down module)
  • Module Nature: Non-isolated buck
  • Rectification Method: Synchronous rectification
  • Input Voltage: 4.75 V - 23 V
  • Output Voltage: 1.0 V - 17 V
  • Output Current: Peak 3 A , long time 1.8 A
  • Conversion Efficiency: 96 % ( maximum )
  • Operating Frequency: 340 KHz
  • Output Ripple: 30 mV ( when no load )
  • Load Regulation: ± 0.5 %
  • Voltage Regulation rate: ± 2.5 %
  • Operating Temperature: - 40 ℃ To + 85 ℃

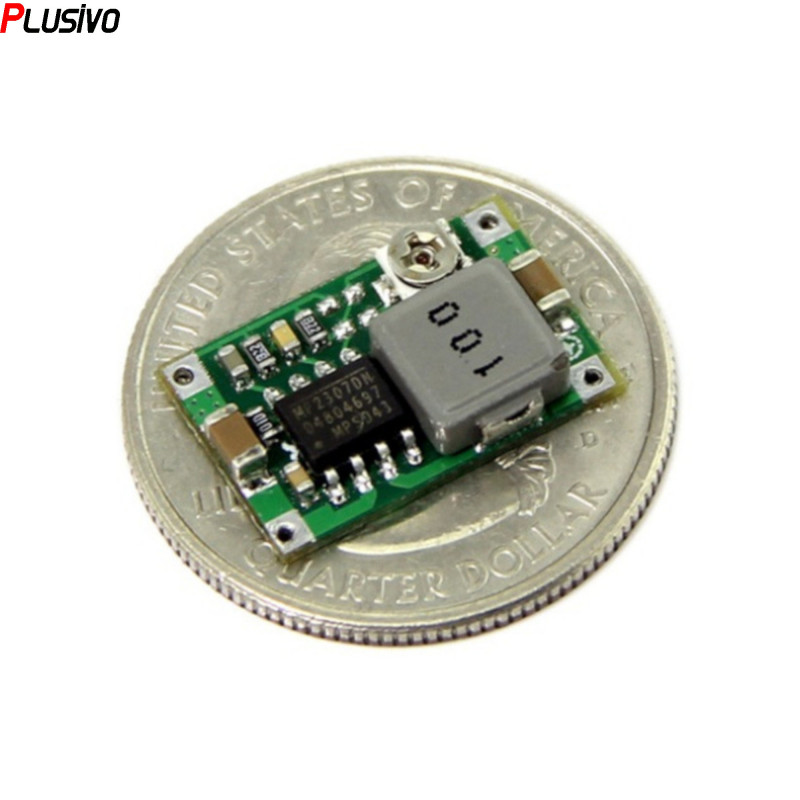

  • External Dimensions: 17 x 11 x 3.8 (length x width x height) ( mm )


Features


Using integrated power inductor and synchronous rectification control chip, smaller size and higher efficiency.


Applications


DIY mobile power supply, vehicle power supply, communication equipment power supply, various occasions that have strict requirements on volume and weight (such as aviation models, etc.).


Don't delay, buy today.


Add to cart now!

Reviews

Grade
07/31/2021

Very useful for small projects.

This is very tiny and powerful converter, support wide range input. Good little voltage converter!

    Grade
    06/26/2021

    It is very simple to use, and adjusting it is easy.

    This board is not much bigger than a TO-220 voltage regulator, however it is able to hold a stable voltage output while suppling a full 3Amps of current continuously, and maintaining a normal temperature.

      Grade
      06/18/2021

      Powerful little device.

      Amazed by how well this tiny little board regulates DCvoltage.

        Grade
        06/18/2021

        Very useful tiny module

        It has come in really handy for a small regulator that can be used as part of a Solar powered small device and can be used to step down from 8-12V to 5V to drive a LiOn battery charge module.
