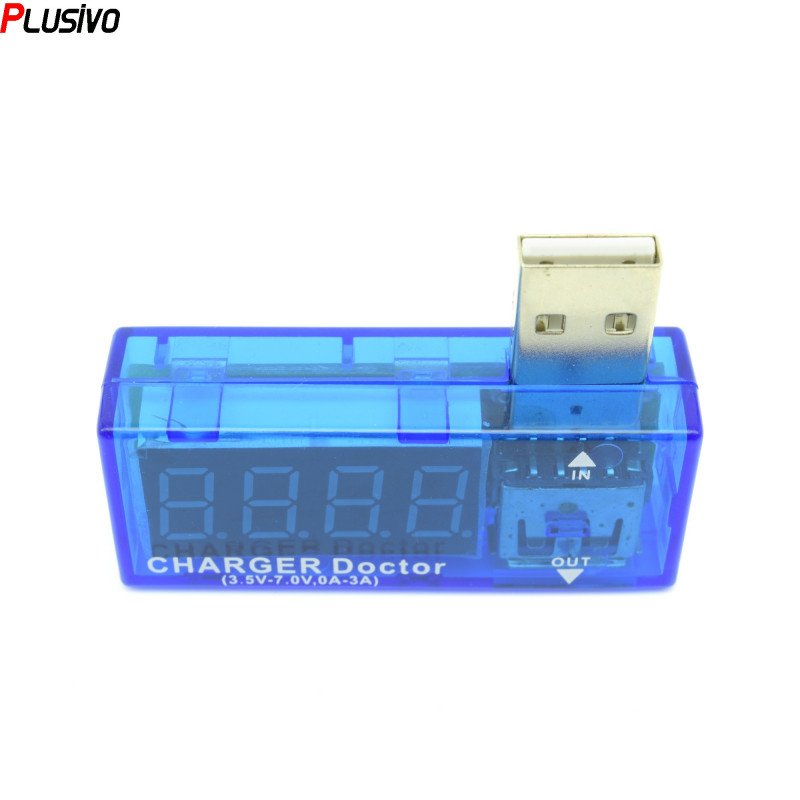

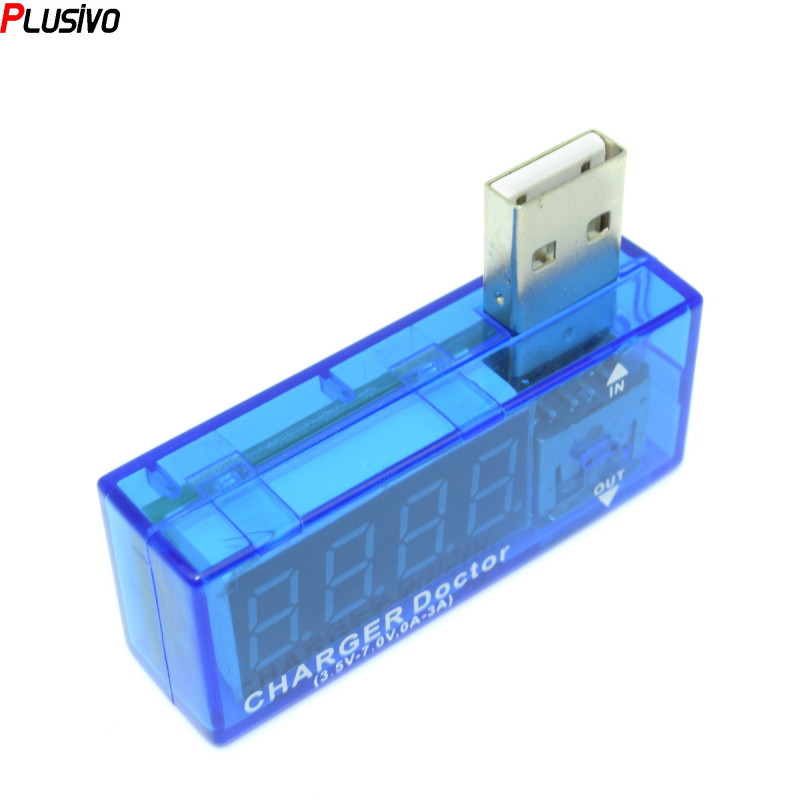

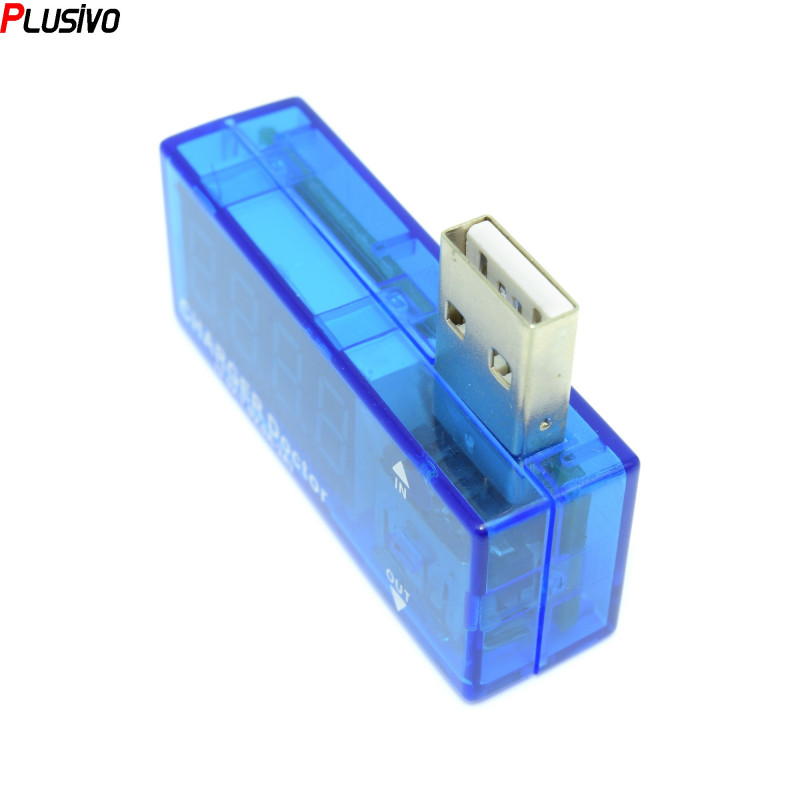

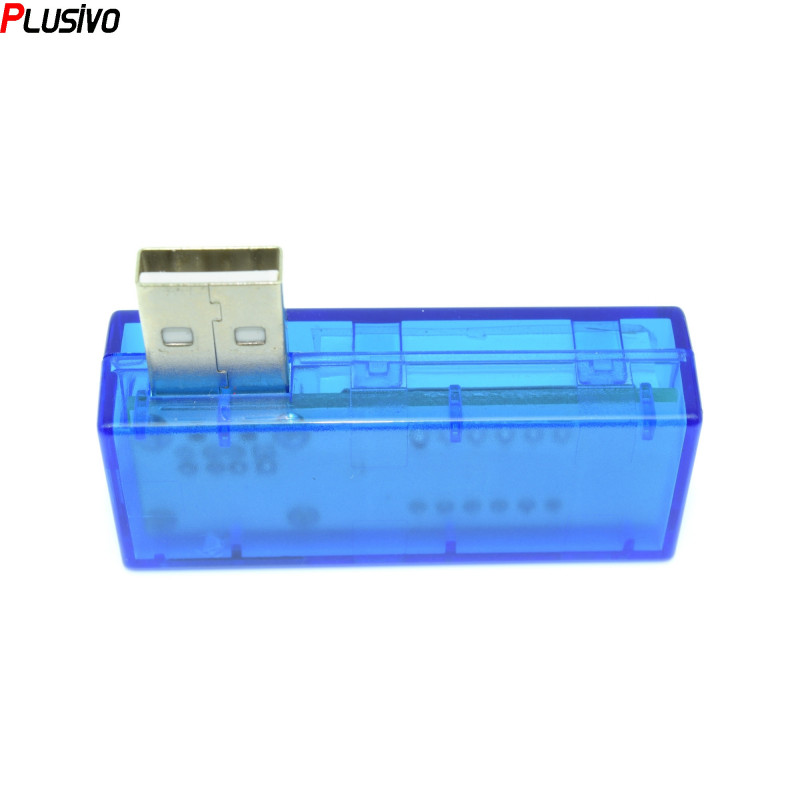

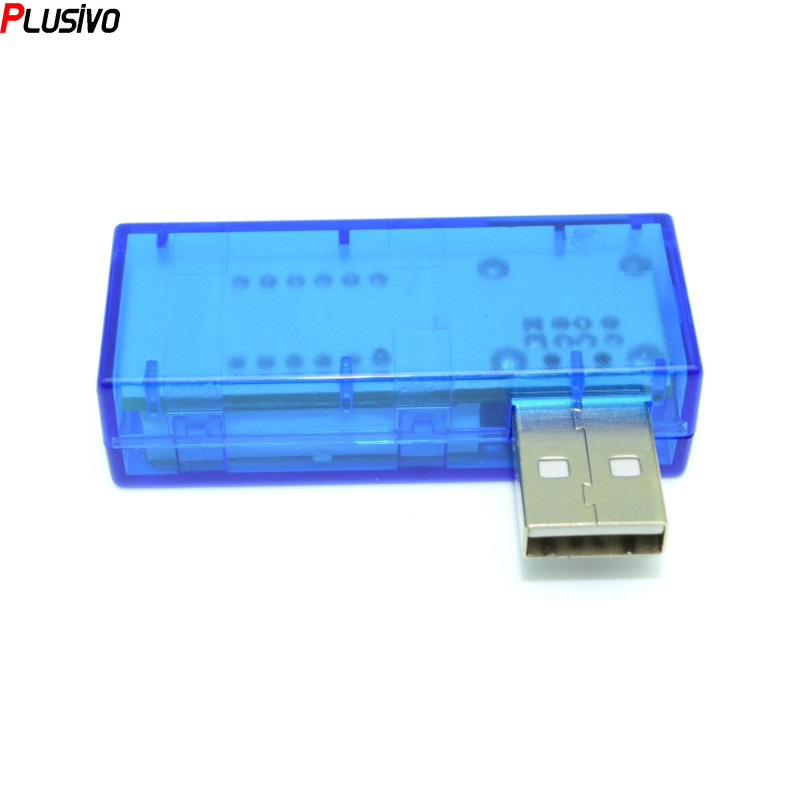

USB Power Monitor

0104110000003485

New product

This USB monitoring device can measure current up to 2.5 A and voltage between 3 V and 7.5 V.


See Description for more details about the product.

Add to cart now!

More details

81 Items

₱56.00
tax incl.

-₱13.00

₱69.00 tax incl.

More info

Overview


This can be used to measure current and voltage when your phone is charging via power bank. It is also ideal for monitoring power consuming devices when connected to your computer.

This device can measure current up to 3 A and voltage between 3 V and 7.5 V. Resolution for display is 10 mA and 10 mV respectively. The error for voltage is ± 1% and ± 2% for current. It can be used for cellphone, chargers, and other USB-powered devices.


Specifications

  • Working Current: 0 to 2.5 A
  • Working Voltage: 3 V to 7.5 A
  • Voltage Resolution: 10 mV
  • Current Resolution: 10 mA
  • Voltage Error: < ±1%
  • Voltage Current: < ±2%
  • Operating Temperature: 0˚ C to 60˚ C
  • Dimensions: 52 x 20 x 14 mm


Features

1. Uses a new generation of 4-digit semi-double integral cyclic conversion integrated circuit, equipped with a precision band gap reference source, accurate range, high precision, stable work, reliable performance, strong anti-interference ability, high temperature resistance.

2. Can be used to measure USB power supply or consumption of products such as interfaces, mobile phone chargers, and USB flash drives.

3. This product can measure the voltage when the USB power supply device is empty or under load, and the voltage and current when the USB terminal device is working.

4. Current and voltage cycle display, easy to use and practical.

5. Small and easy to carry, no need to connect to a power supply.


Don't delay, buy today.


Add to cart now!

Reviews

Grade
08/31/2021

I love these things

It's hard to find out if the charger is bad or cable, this puts an end to guessing.

    Grade
    06/19/2021

    Useful Electronic Tool

    It works perfectly, enable the maximum coupling from a wireless charger to my phone without a load the USB measures a precise 5V.

      Grade
      04/28/2021

      Perfect affordable Troubleshooting Tool

      This is a great tool to use for troubleshooting. I've used it to test powerbanks for capacity (mAH), test the charging speed of devices with different cables (Amps), and test the output of usb power supplies (Voltage) / Amps) It's as small as a USB Memory stick and just as affordable. There's no reason not to have one.

        Grade
        03/11/2021

        Excellent

        Works great when checking for voltage on USB adapter

          Grade
          02/10/2021

          Five Stars

          Great little device which does as it says, very happy for the price

            Grade
            12/14/2020

            Great meter

            I've had this meter for less than 3 days and it has already helped me figure out why my phone battery dies so quickly. This little device helped me figure out that the battery is only holding 2/3 the capacity it should be. Very happy that such an inexpensive device saved me from buying a new phone.

              Grade
              11/20/2020

              Great product

              Very useful and helpful product. Easy to read display. I like everything about this little thing... especially the price. Lol

                Grade
                09/03/2020

                The product collects the data accurately.

                It can be used to calculate the capacity of your phone or portable charger. Comes in handy all the time!

                  Grade
                  07/31/2020

                  Just perfect

                  I absolutely love this device and will replace it if it ever dies. Very neat device for amp consumption...

                    Grade
                    07/06/2020

                    Good for testing chargers and measuring power consumption

                    This item works great. I plan on using it to measure current draw of my Arduino projects.
