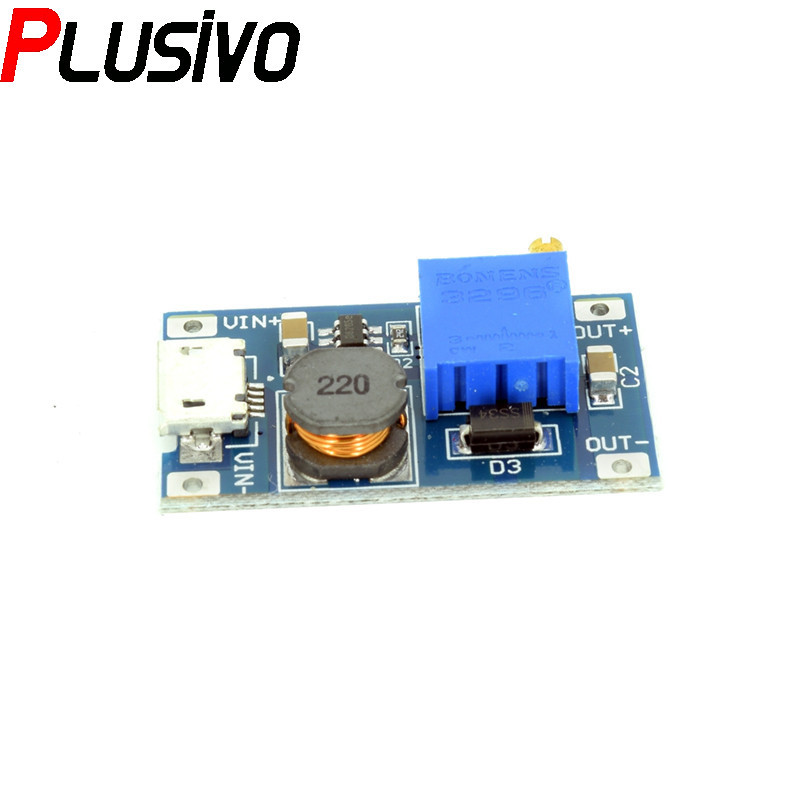

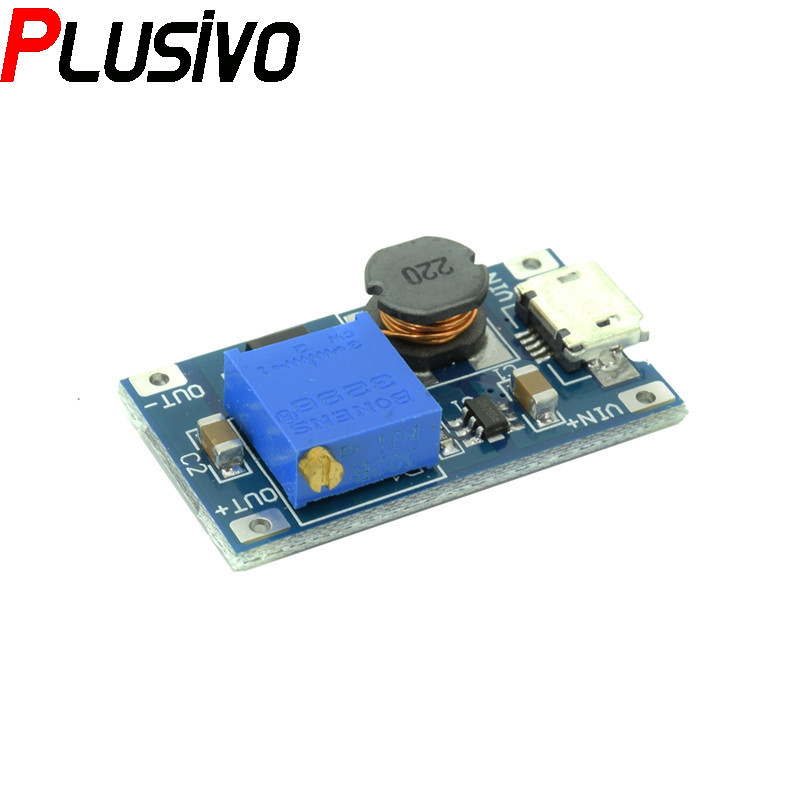

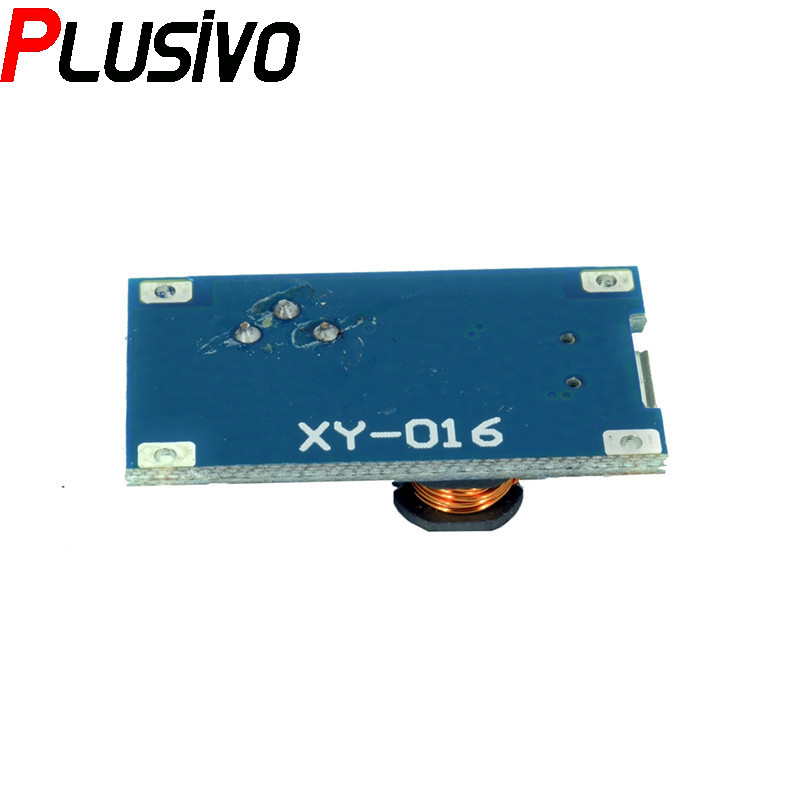

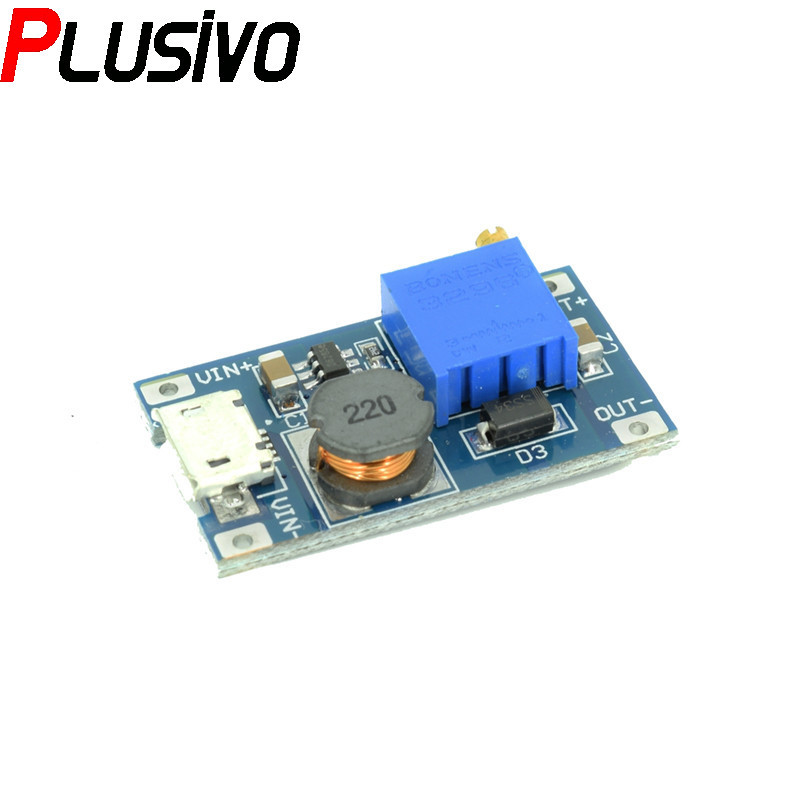

2A DC-DC Boost Module

Overview

This is a step up booster module with micro USB interface featuring adjustable output voltage and high efficiency.

Using Micro USB input , you can easily get 9V, 12V, 15V, 18V, 24V common voltages through the mobile phone data line with a USB charger or mobile power supply.

Specifications

• Output current: 2 A (recommended to use within 1A)
• Input voltage: 2 V - 24 V
• Maximum output voltage: > 28 V (recommended to use within 26 V)
• Efficiency: > 93% (The efficiency is related to the pressure difference between input and output)
• Size: 30mm x 17 mm x 14 mm (length x width x height )

Note: The output voltage must be higher than the input voltage.

Precautions

1. This module is a boost module, the output voltage must be greater than the input voltage

2. Peak current output current does not exceed 2A

3. When the output voltage of the module cannot be adjusted and is always equal to the input voltage, please turn the potentiometer counterclockwise for more than 10 turns, and then use the module to adjust the voltage normally. Voltage adjustment method: the potentiometer faces the chest, counterclockwise to boost!
