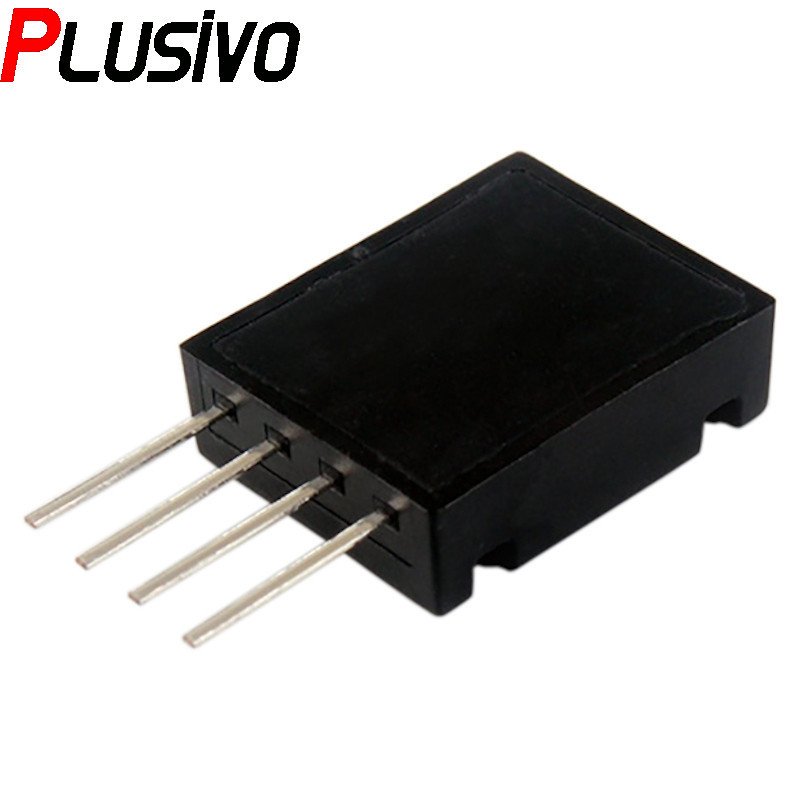

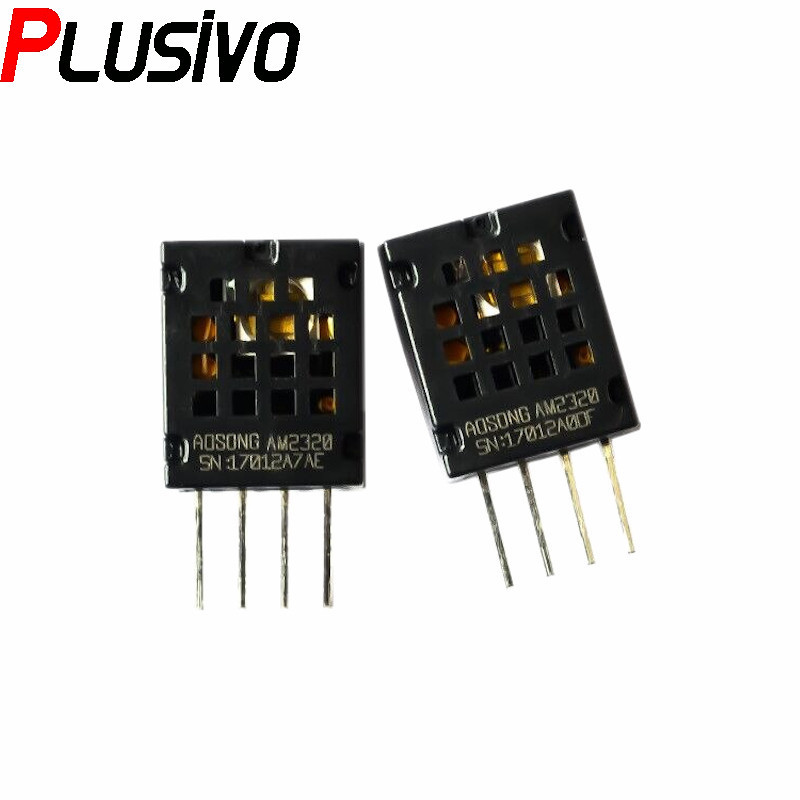

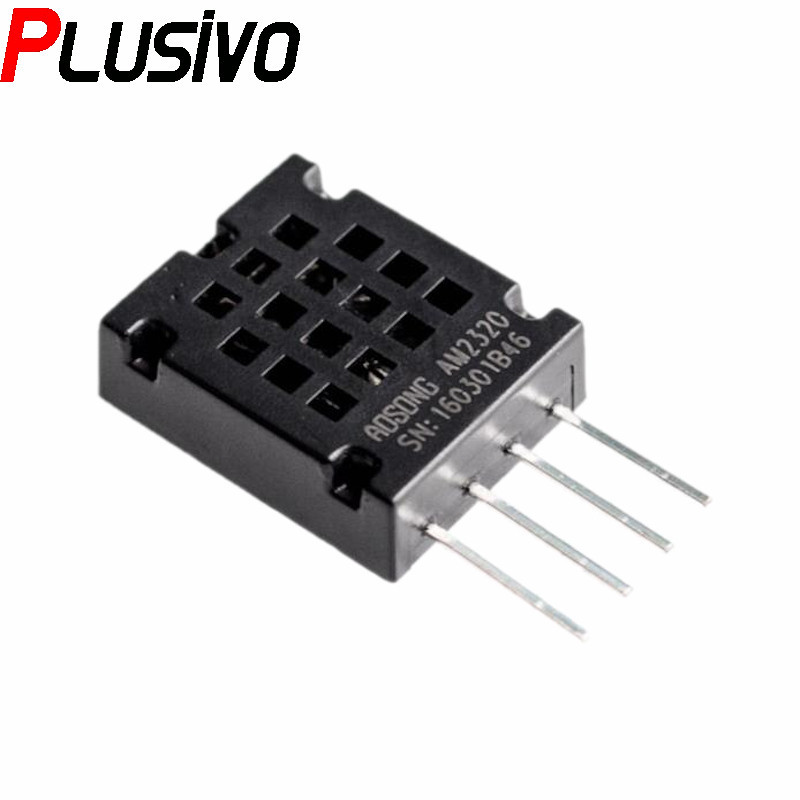

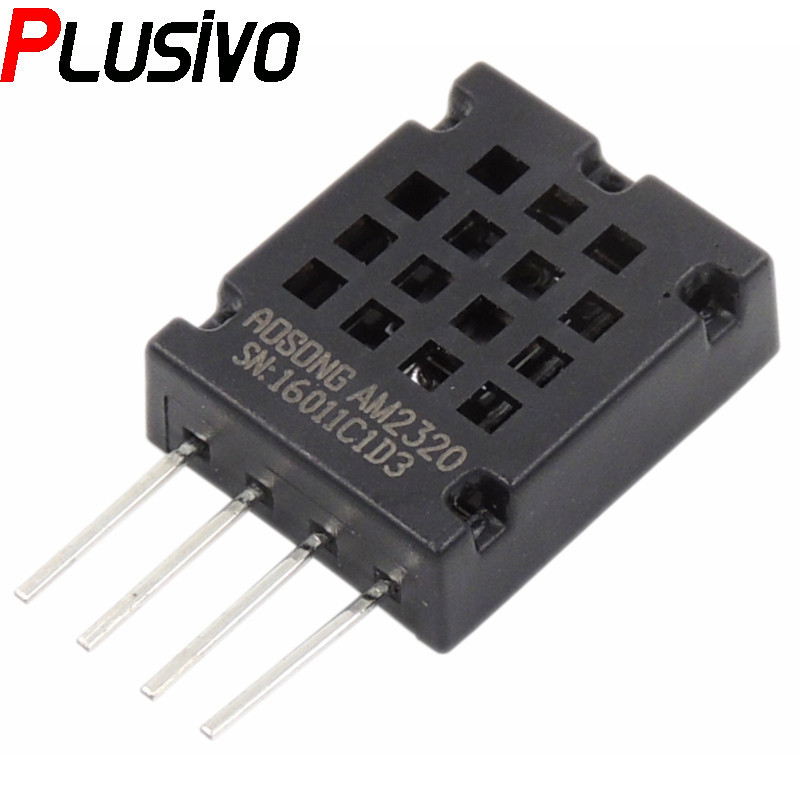

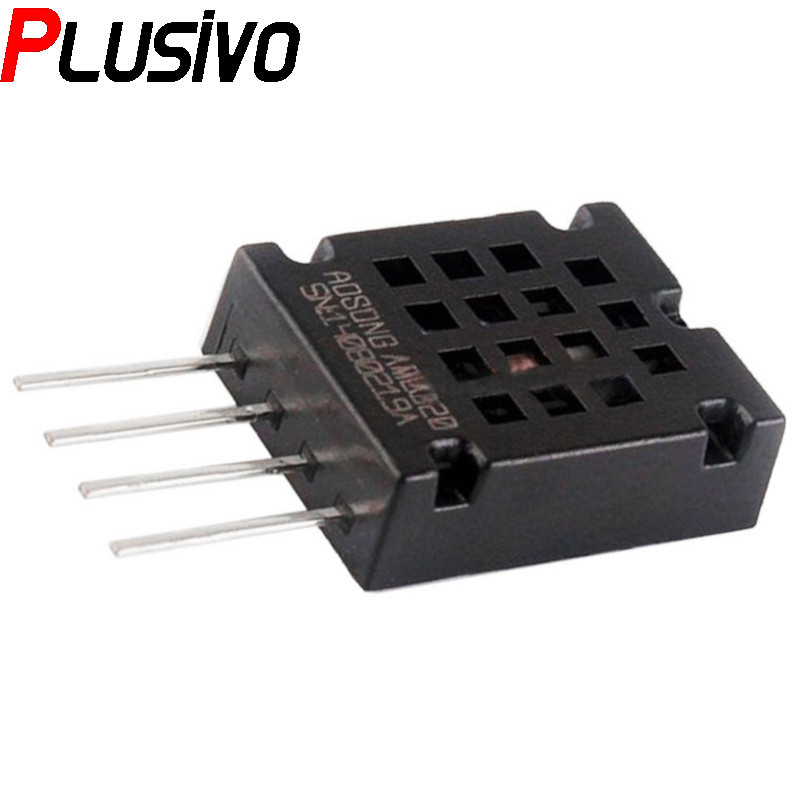

AM2320 Temperature and Humidity Sensor

Technical specifications:

• Humidity measurement range: 0% RH - 99.9% RH;
• Humidity measurement resolution: 0.1% RH;
• Humidity measurement accuracy at a temperature of 25 degrees: 3% RH;
• Humidity measurement response time: 5 seconds;
• Drift humidity: <0.5% RH / year;
• Temperature measurement range: -40 ~ +80 degrees Celsius;
• Resolution: 0.1 degrees Celsius / 16 bits;
• Accuracy: 0.5 degrees Celsius;
• Response time: <5 seconds="" li="">
• Drift temperature: 0.1 degrees Celsius / year;
• Supply voltage: 3.1V - 5.5V;
• Recommended supply voltage: 5V;
• Maximum current consumption: 950uA;
• Average current consumed: 350uA;
• Output current: maximum 8mA;
• Sampling period: 2 seconds;

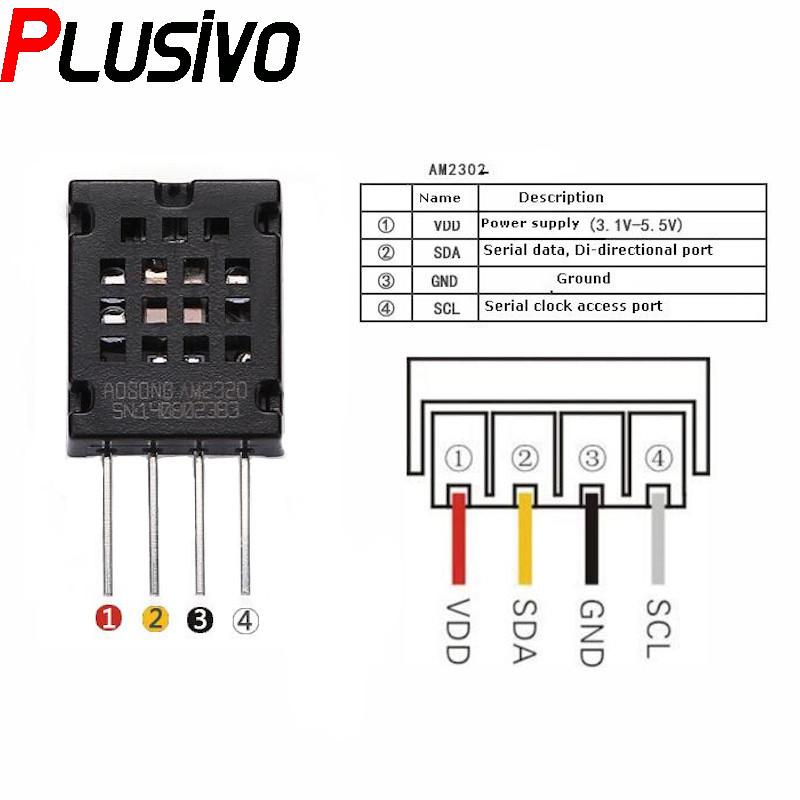

• It can communicate on I2C or 1Wire interface.

This product is an AM2320 temperature and humidity sensor, small in size and very good value for money. It is useful in your innovative projects with which you can monitor the weather or the characteristics of the room in which you live.

The sensor is a high-performance one, with very good accuracy when measuring temperature, but also when measuring humidity. It can also communicate with a microcontroller or development board via the I2C interface or the 1Wire interface. The mode of communication, the address, and the order of data transmission are described in the attached datasheet.

Example of use with Arduino.
