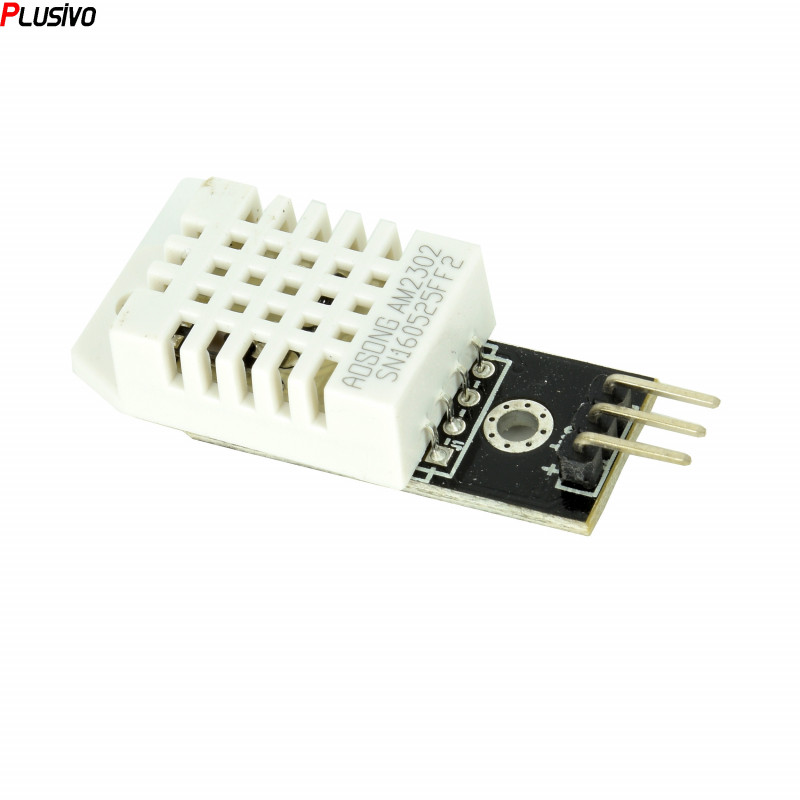

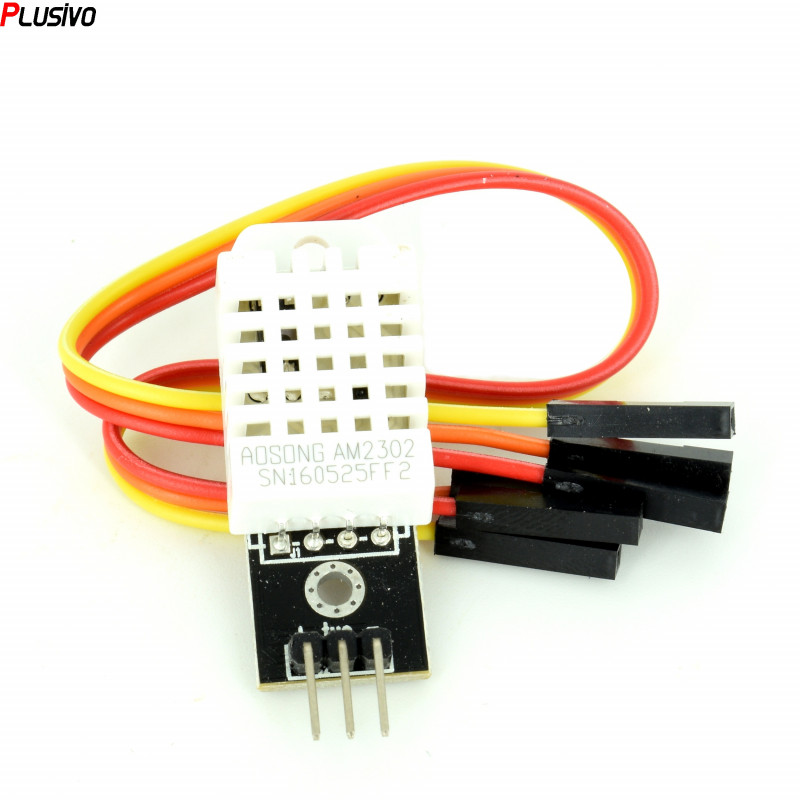

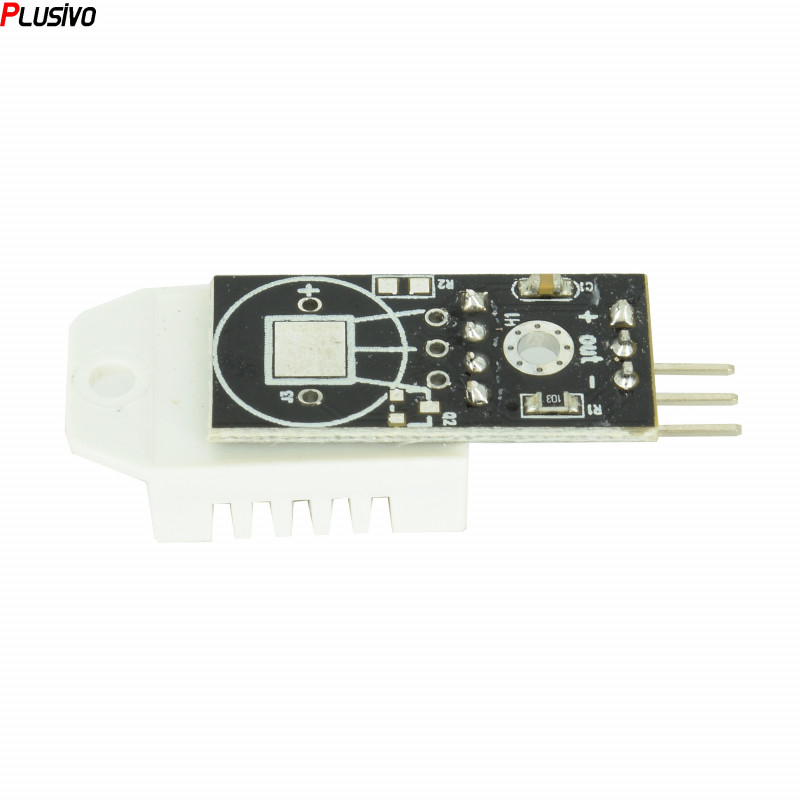

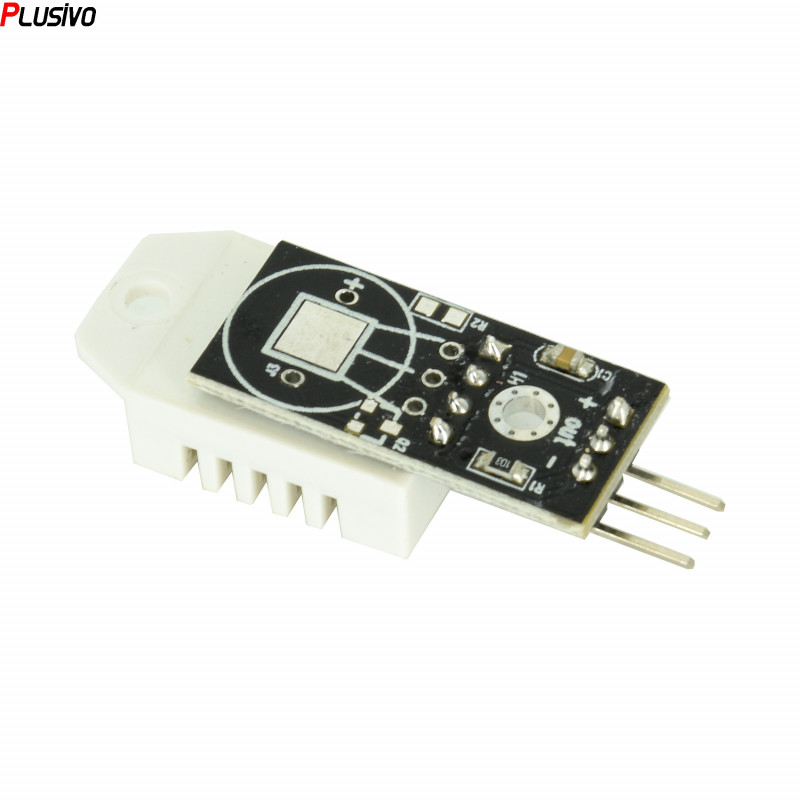

DHT22 Temperature and Humidity Sensor Module

0104110000008527

New product

DHT22 is a small, handy, and inexpensive high-performance temperature and humidity sensor capable of long-distance signal transmission.


See Description for more details about the product.

Add to cart now!

More details

This product is no longer in stock

₱129.00
tax incl.

-₱143.00

₱272.00 tax incl.

More info

Overview


DHT22 is a high-performance temperature and humidity sensor capable of long-distance signal transmission.

The product is inexpensive, small and handy and has high reliability and excellent stability. It has a temperature measuring sensor and the relative humidity is measured using a capacitive moisture sensor. Those sensing elements are pre-calibrated and the output is provided as a digital signal.


Specifications

  • Supply Voltage: 3.3 to 5.5 V
  • Humidity sensing range: 0 – 100% RH
  • Humidity measurement accuracy: ±2% RH
  • Temperature measurement range: -40 to +80 °C
  • Temperature measurement accuracy: ±0.5 °C
  • Size: 28 mm x 12 mm x 10 mm


Features

1. Humidity measurement range: 0---100%RH

2. Humidity measurement accuracy: ±2%RH

3. Temperature measurement range: -40---80℃

4. Temperature measurement accuracy: ±0.5℃

5. Working voltage: DC5V commonly used

6. Single bus digital signal output, two-way serial data port


Don't delay, buy today.


Add to cart now!

Reviews

Grade
03/23/2021

Stable and Accurate

Works exactly as described with a Raspberry Pi 3! Both temperature and humidity appear to be accurate and stable.

    Grade
    03/23/2021

    Great upgrade to the DHT11

    I was using DHT11 modules previously, and then I figured I would try the DHT22's. I like the DHT22's better. they seem a little more accurate, and some issues with the DHT11's have been corrected.

      Grade
      09/30/2020

      Easy to use!

      I've found it easy to use & find a library for. Had the best experience using the Adafruit library version 1.2.3 in github. Very accurate, though apply silicone to exposed metal pins if placed in an exceptionally humid environment. The more humid the environment the shorter the life as it goes with any hardware with metal parts. Highly recommend!

        Grade
        09/24/2020

        Perfect for Raspberry Pi

        Amazingly accurate and stable. Directly connects to a Raspberry Pi with just 3 wires. Make sure that you build the git drivers from adafruit.

          Grade
          09/18/2020

          A good sensor and learning tool

          Cool Humidity and Temperature sensors used with a raspberry pi. Tutorials call for a 10k resistor between signal and ground, but I believe that the little board that this sensor is mounted to is taking care of that. In my tests the results were the same with and without the additional resistor.

            Grade
            09/13/2020

            Good quality

            Good quality and works well. very accurate when tested.

              Grade
              08/31/2020

              Great Value

              Works great with my Sonoff Basic Tasmota flashed device. Very accurate. Running at 3.3v

                Grade
                08/27/2020

                Accurate and easy to use

                These are as accurate as any other thermometer and hygrometer I have in my home. I connected these up to some Raspberry Pi Zeros and set them up in a few rooms in my house where the temperature fluctuates wildly so I could monitor the temperature remotely on my phone. I set up a website that displays the reading from these sensors and sends me text alerts when the temperature or humidity go outside of some defined limits.

                  Grade
                  08/12/2020

                  Works great on my Raspberry pi

                  Got these hooked up to my Raspberry Pi in about 15 minutes. Accurate enough for me, use very little power overall, and seem sturdy enough for my use.

                    Grade
                    07/31/2020

                    Everything Works Great

                    Easy to use and much better than the DHT11. Ensure you have a 10kOhm resistor connecting the data line to the vcc of your power supply. I'm using this for the Arduino microcontroller and everything works well. The code can be accessed by searching dht22 arduino code.

                      Grade
                      07/05/2020

                      Simple and accurate

                      This temperature/humidity sensor works well and is simple to set up. I had it connected to my Arduino and feeding data to my computer in just a few minutes. Credit the incredible support the Arduino community provides and the perfect functioning of the sensor. I would recommend this sensor as a great addition to a weather monitor or similar project.
