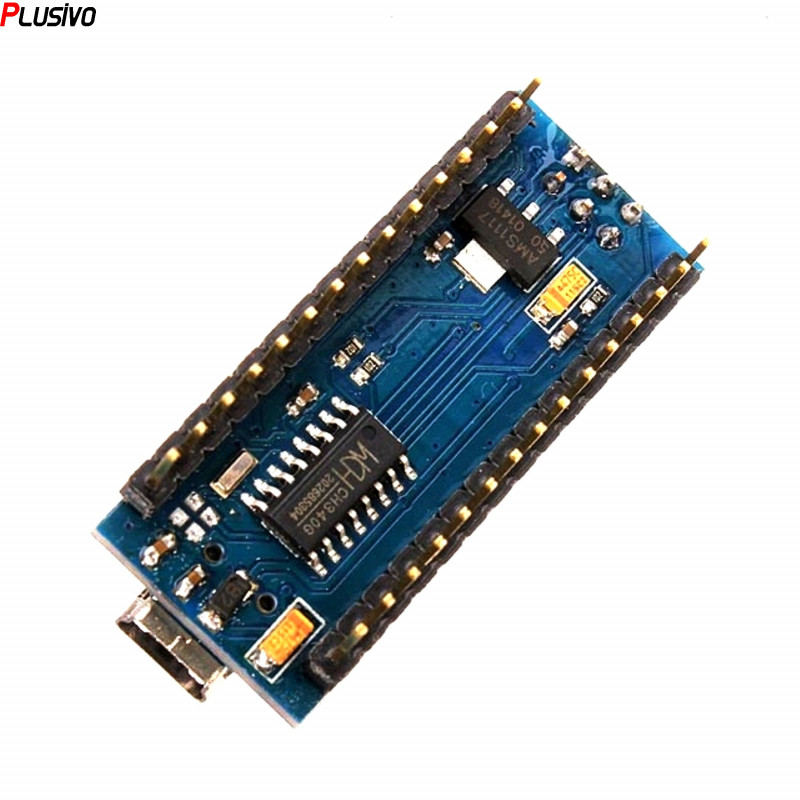

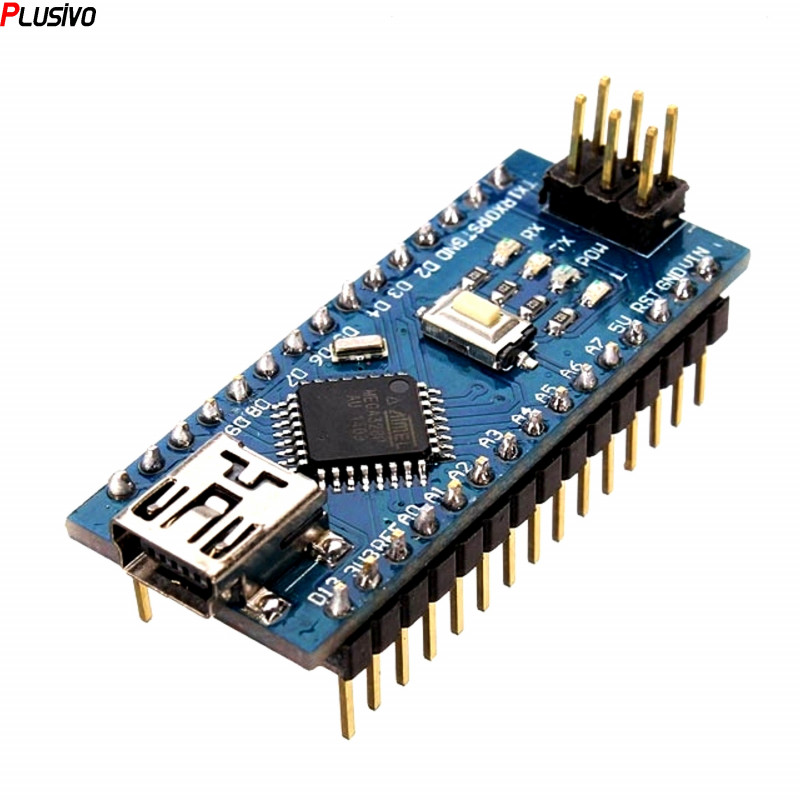

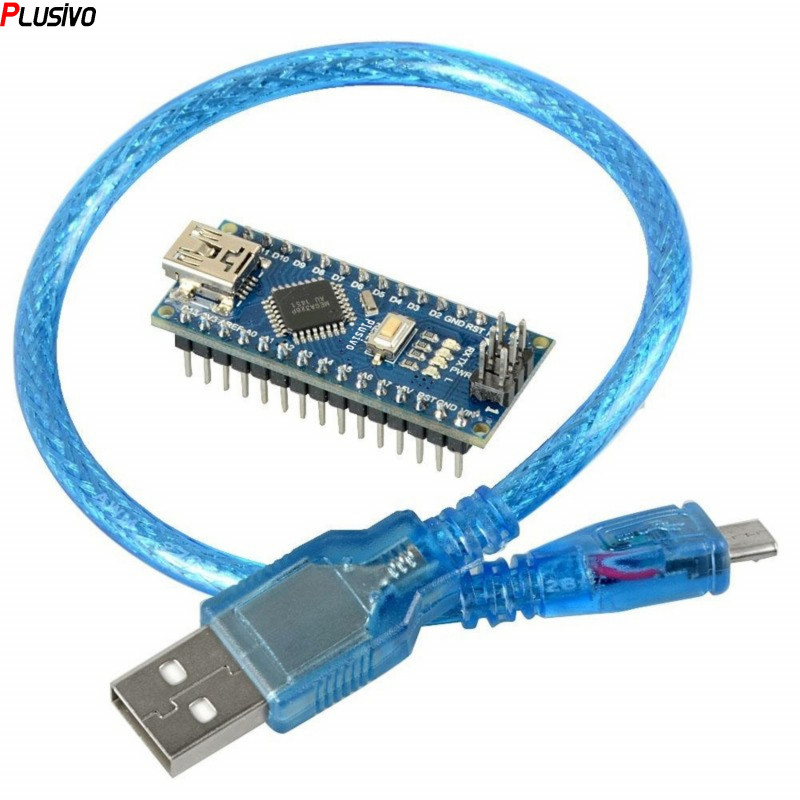

Development Board Compatible with Arduino Nano (ATmega328p + CH340) with USB cable

0104110000007919

New product

Arduino compatible development board with Nano-based microcontroller USB serial converter ATmega328P and CH340.


See Description for more details about the product.

Add to cart now!

More details

1 Item

Warning: Last items in stock!

₱149.00
tax incl.

-₱106.00

₱255.00 tax incl.

More info

Overview


This development board provides a small plate with the same powerful microcontroller, Arduino Uno. It is compatible with Arduino and ideal for fast prototyping and easy integration. It can be used with other sensors to create different montages. Ideal for small projects and has the advantage that it can be programmed via USB.

The board uses the Atmega328p microcontroller, the same integrated circuit used in many Arduino boards. It basically offers the same functionality as Arduino Uno or Arduino Duemilanove but in a smaller form factor.

It can be programmed directly from the Arduino IDE, using the USB mini connection.

This board is ideal for small projects and has the advantage that it can be programmed via USB.

Do not forget to install the driver (attached at the bottom) for chip CH340 before use.


Note: This board is a 100% compatible clone version produced in China from the same design as Arduino Nano. It is not the original version which is made in Italy.


Specifications

  • Voltage: 5 V;
  • Supply voltage limiter supported by: 7 V - 12 V;
  • I / O pins: 14;
  • PWM pin 6 (out of 14 I / O);
  • ADC pin: 8 (out of 14 I / O);
  • Flash Memory: 32 KB / 16 kB (2 KB used by bootloader);
  • Current I / O pin: 40 mA / pin;
  • Communication TWI, SPI and UART;
  • Operating frequency: 16 MHz;
  • Dimensions: 45 mm x 18 mm.


Don't delay. Buy today.


Add to cart now!

Reviews

Grade
08/27/2021

Simple and high-quality.

I'm a complete beginner when it comes to soldering and although I melted away the text on the board by overheating it, the pins were well secured and the solder flowed nicely.

    Grade
    08/10/2021

    Great for Any One Avid Enthusiast

    Easy to be install. The circuit boards are working as they supposed to work. The free online websites teach and educate on how to program those boards. Can be done individually, as needed. Great work. Recommended seller. Thank you.

      Grade
      07/09/2021

      Perfect for Arduino Nano at a great price.

      The board operated as expected. Utilized Arduino IDE for programming.

        Grade
        06/15/2021

        Great value for a great microcontroller!

        These are a great price and work perfectly. You can use these in place of an uno but with a much smaller footprint. I will be buying again and again as needed.

          Grade
          06/15/2021

          Works well - no problems

          Been using these for various projects. Very reliable and work well. No issues.

            Grade
            06/10/2021

            Great product

            The board works perfectly. Awesome boards for the price.
