RGB LED Common Cathode

0104210000002096

New product

Are you in need of a bunch of bright and blinking multicolored tiny lights for your project? With this pack, you can make your project elegant.


See Description for more details about the product.

Add to cart now!

More details

685 Items

₱6.00
tax incl.

-₱5.00

₱11.00 tax incl.

More info

Overview

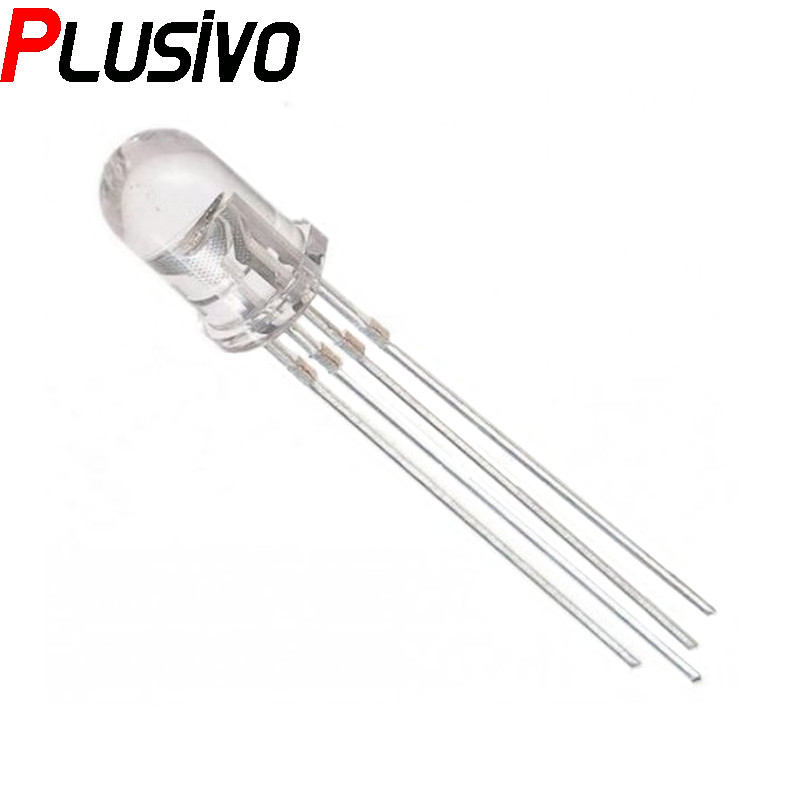

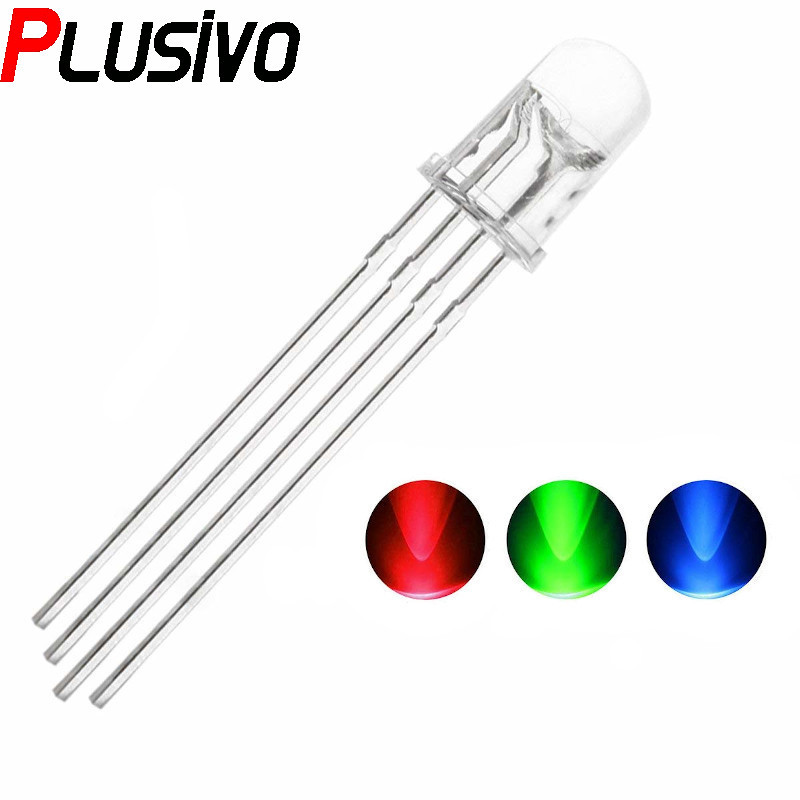

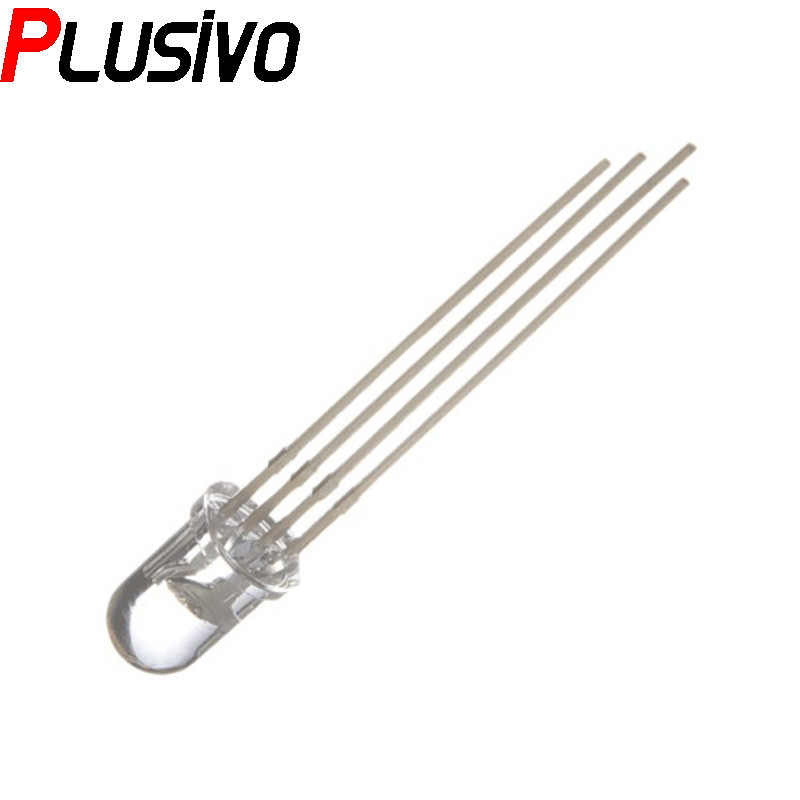

With the use of these 5 mm very bright RGB LEDs common anode and a micro controller, you can produce your desired mixture of colors. Using these RGB LEDs, you can make the over-all look of your prototype and project attractive and brilliant.


Specifications

  • RED
    • Color frequency: 630 - 640 nm
    • Luminous Intensity: 1000-1200 mcd
    • Forward Voltage: 1.8 - 2.0 V
  • GREEN
    • Color frequency: 515 - 525 nm
    • Luminous Intensity: 3000-5000 mcd
    • Forward Voltage: 3.2 - 3.4 V
  • BLUE
    • Color frequency: 465 - 475 nm
    • Luminous Intensity: 2000-3000 mcd
    • Forward Voltage: 3.2 - 3.4 V


Don't delay, buy today.


Add to cart now!

Reviews

Grade
08/27/2021

Good price and found no duds!

This is the second batch of these I’ve bought and they work great for making Ebike tail lights. I run about 25 of these in series with one of the included resistors at each end of the string for a48v battery.

    Grade
    06/15/2021

    Great RGB

    Used 100-ohm resistors with VCC of 3.3V and they were very bright. LEDs diffuse works very nicely.

      Grade
      05/06/2021

      Quality product

      These were perfect for my projects!

        Grade
        03/04/2021

        Nice, bright, even with only 5 milliamps

        These worked very well for my low power project which needed LEDs that are nice and bright under small current conditions

          Grade
          03/04/2021

          Great for hobby electronics

          I've used these in a variety of projects and love them. Mostly, I'm connecting them to Arduinos and running them with 5V power + resistor. It's hard to find the version with a common cathode.

            Grade
            02/13/2021

            Really cool LEDs

            Really love the brightness these LEDs have. This item is for the common cathode one. Didn't know the difference between common cathode vs common anode so I had to read about them. I'm a beginner so I still don't know that much about the specifics but it was really easy to set up for my project. I also bought the common anode LEDs and for my needs I like to use them. Also read up that the common anode are overall the preferred ones to use. Bought my other LEDs from Plusivo and I love them. All LEDs that I received worked perfectly.

              Grade
              02/11/2021

              Excellent lights

              A little bit of wiring and soldering and I got myself an rgb mouseat. excellent product, thanks.

                Grade
                02/11/2021

                Good LEDS, good price

                These LEDs have great colors and brightness. Easy to use, pretty good tolerance. All of mine worked exceptionally well and each color works. I am using these with an Arduino board. I tested them all with a color mixer sketch (of my own).

                  Grade
                  02/02/2021

                  Good quality

                  As always, super high quality product.

                    Grade
                    02/02/2021

                    So far so good

                    I've only used one so far but it has worked perfectly for my needs. I created a cable out of an old Ethernet cable and a 10 pin connector and wired the led so I could connect it to a serial port on a motherboard in a Windows PC. The LED itself is a perfect replacement for the power led in the computer case. I'm using Windows 7 with Windows Media Center and when I have a recording in progress, this led turns red. I'm also able to program it to turn other colors for different reasons. Using software called LEDsDriver by Slick Solutions and EventGhost for different events.
