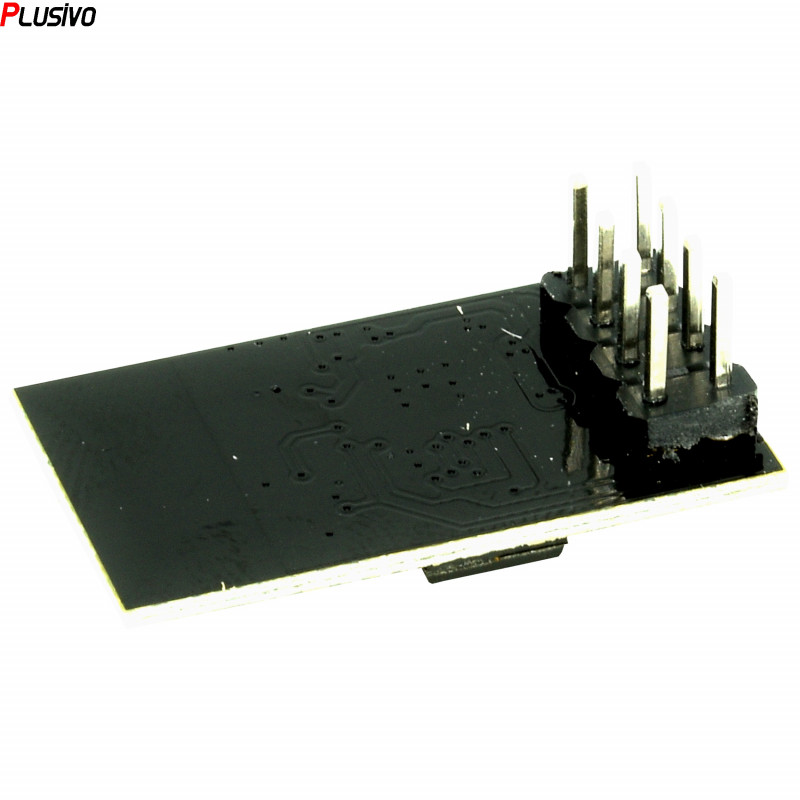

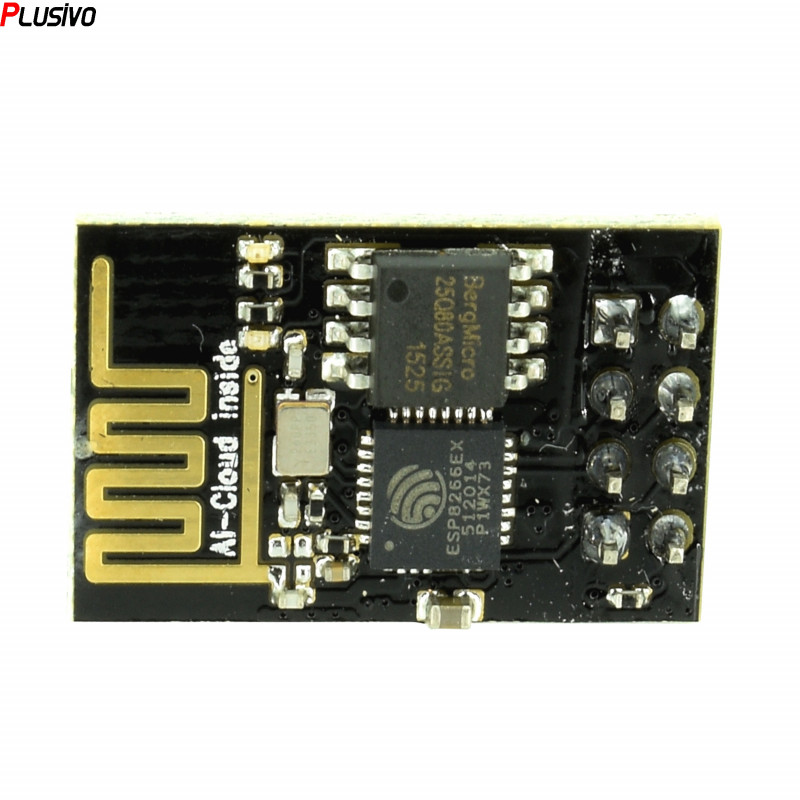

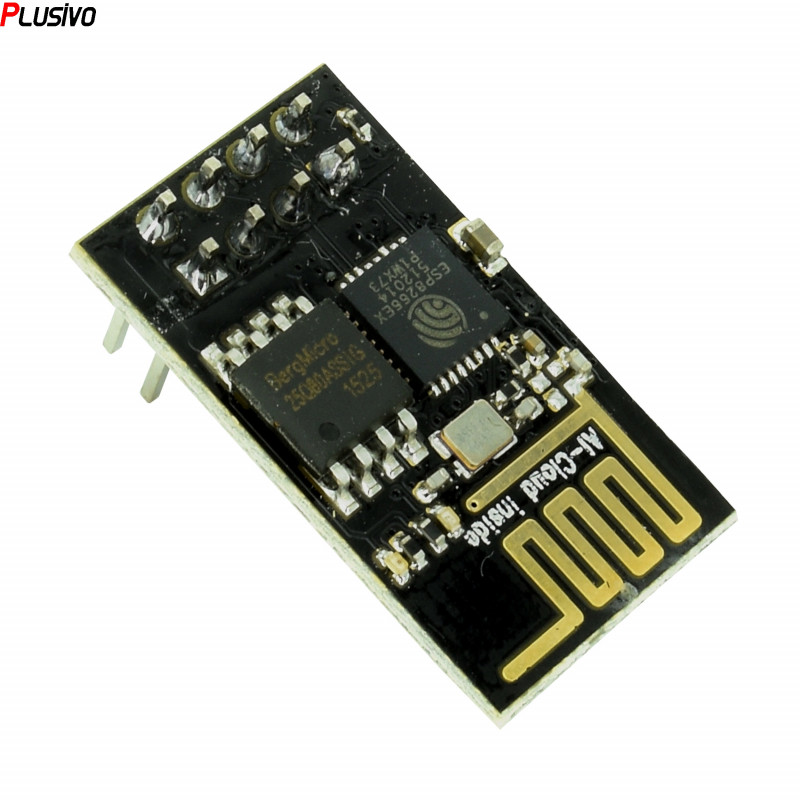

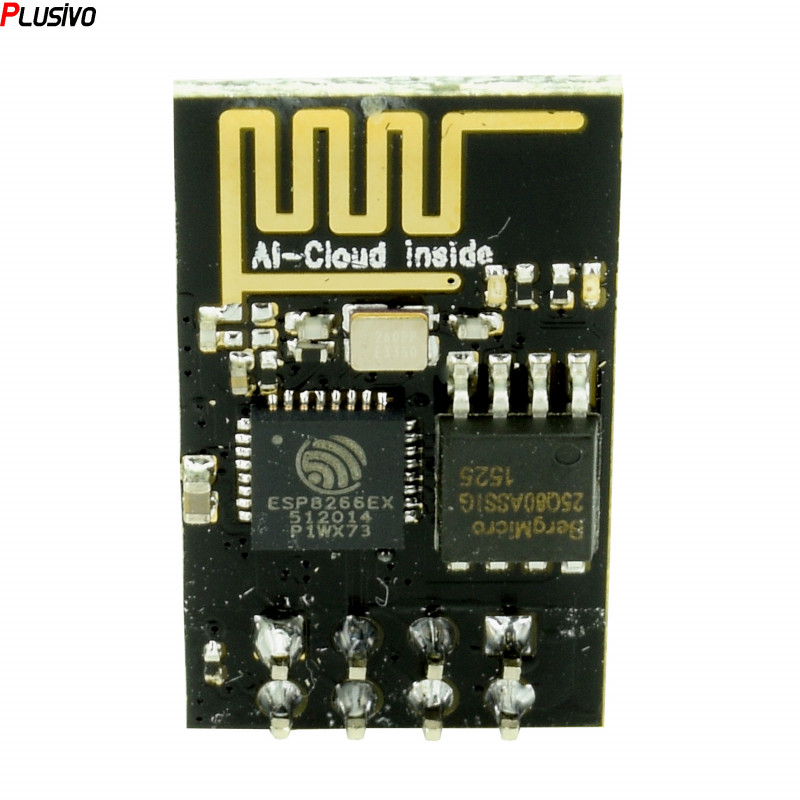

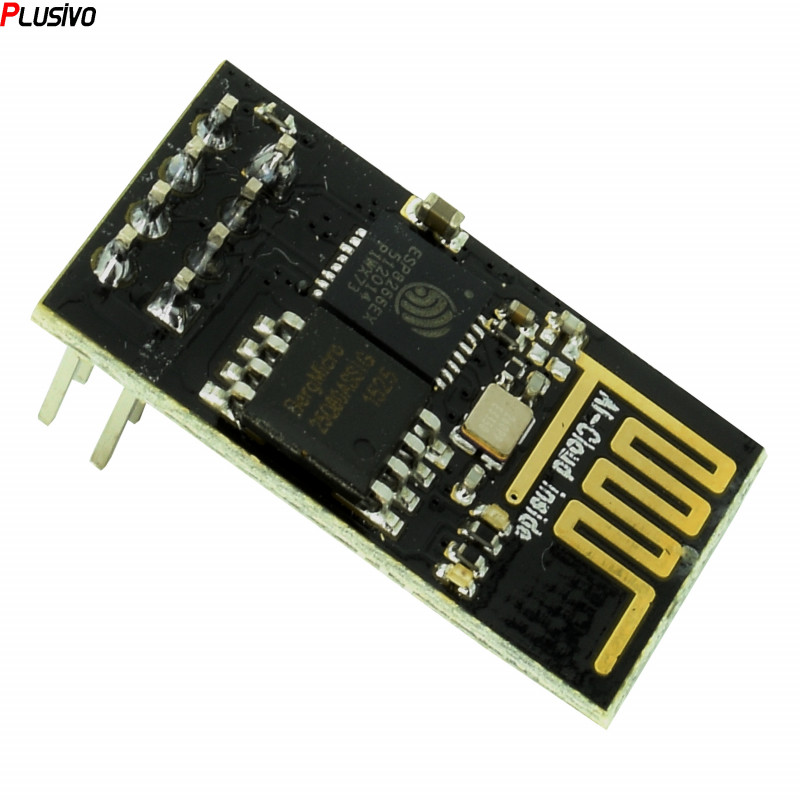

ESP-01 WiFi Module

0104110000000897

New product

The ESP8266 Wifi module is a low cost and highly integrated chip that can easily bring your projects to the internet of things.


See Description for more details about the product.

Add to cart now!

More details

88 Items

₱99.00
tax incl.

-₱67.00

₱166.00 tax incl.

More info

Overview


The ESP8266 module can be integrated with sensors and other devices because it features a very powerful onboard processor and high storage capabilities.

This module is ideal for rapid development of your projects and prototypes.


Features

  • Integrated TCP/IP protocol stack
  • Wi-Fi Direct (P2P), soft-AP
  • Integrated PLL, regulators, and power management units
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated temperature sensor
  • Integrated low power 32-bit CPU
  • Supports antenna diversity
  • SDIO 2.0, SPI, UART
  • STBC, 1x1 MIMO, 2x1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4 µs guard interval


Specifications

  • 802.11 b/g/n protocol
  • Wake up and transmit packets in <2 ms
  • Standby power consumption: < 1.0 mW (DTIM3)
  • Output power: +19.5 dBm (802.11b mode)
  • Power down leakage current: <10 uA
  • Supports three modes: AP, STA , AP + STA mode
  • PCB Size: 11 x 10 mm


Don't delay, buy today.


Add to cart now!

Reviews

Grade
08/10/2021

Addicting. Extremely versatile and useful.

These things are so ridiculously addicting it’s insane. I have them all over my house running small sensors wired up toGPIO2. Next time I may order ones that have access to more ports but for now, and real small jobs, they’re great!

    Grade
    07/30/2021

    Perfect small device for IoT!

    These are great little devices to set up home automation or IoT. Very easy to get running if you have worked with Arduinos in the past.

      Grade
      06/10/2021

      All work Great

      Everything works and ran Arduino Blink. Need to make sure you select the correct pin for LED (Sketch Programming).

        Grade
        06/10/2021

        Excellent price

        If you know what your doing with these, they are fun. Every single one I got from this packaged has worked perfectly

          Grade
          05/18/2021

          You can do more than you thought with this device

          First Time I used this and I love it. So much power in so litlle size.

            Grade
            05/14/2021

            Worked well and packaged properly

            Exactly what they were supposed to be. I was able to program and use it right away. You’ll need a 3.3v power supply and cannot be used directly with a 5v Arduino. Had to add a level shifter to my project (interfacing with an Arduino mega) to communicate
