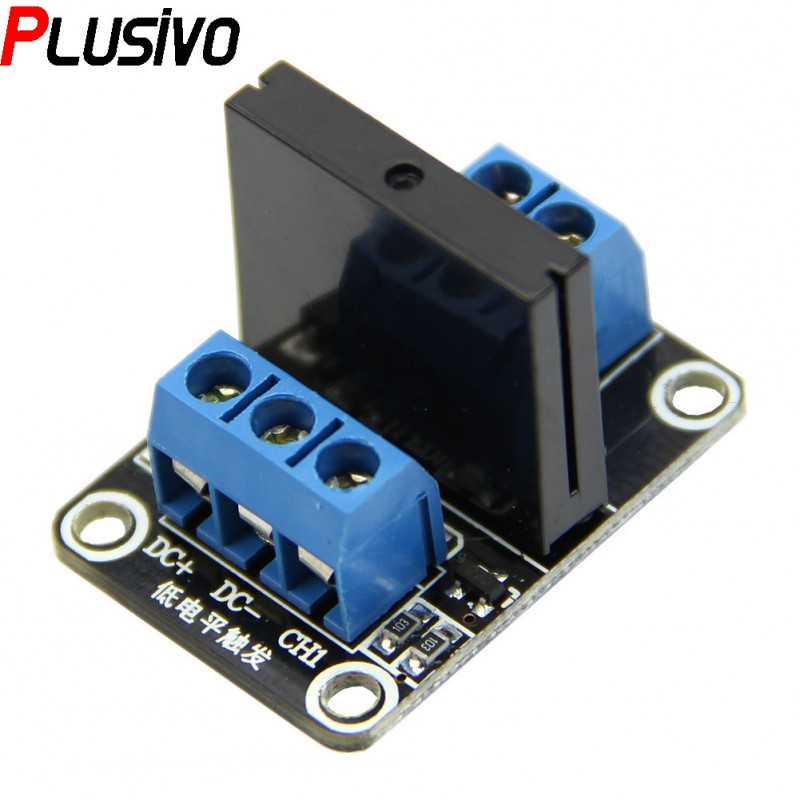

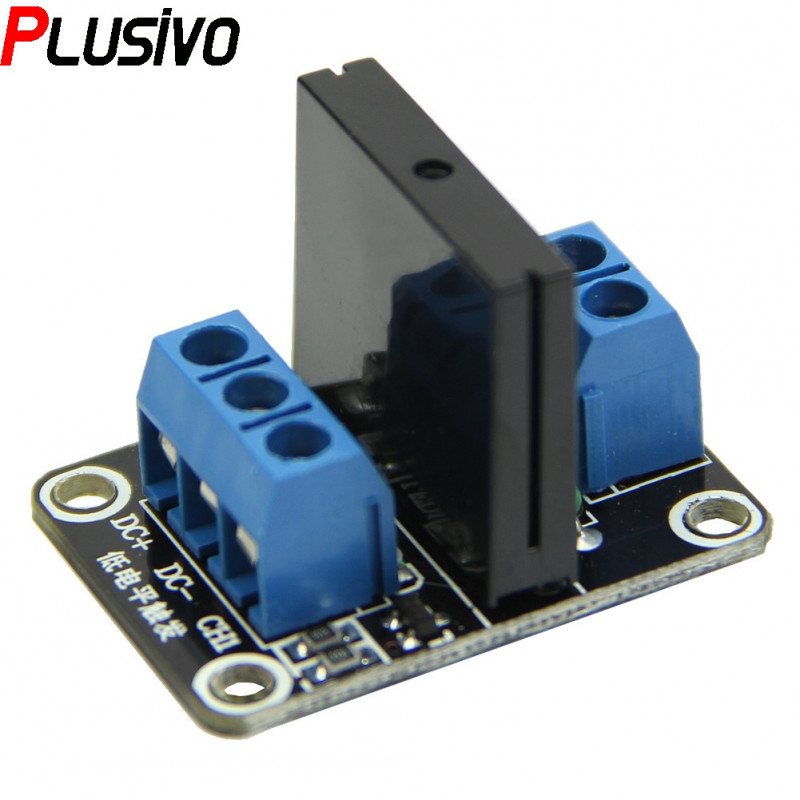

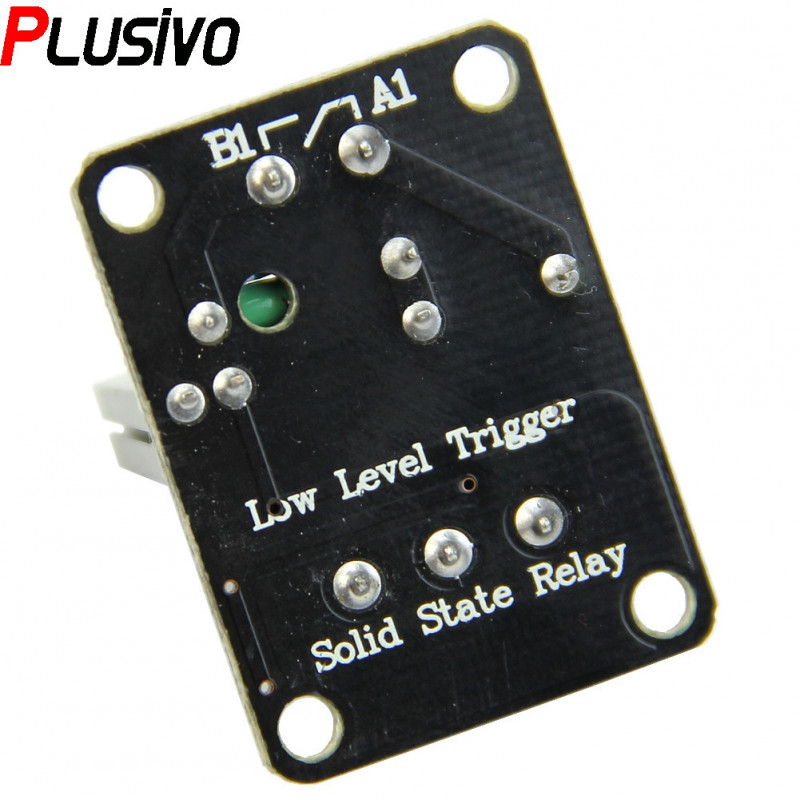

Solid State Relay (240 V, 2 A)

Technical Specifications

• Operating voltage side power: up to 250 V AC (50 - 60 Hz);
• Current: up to 2 A;
• Control voltage: 5 V;
• Control current consumption: 160 mA;
• Safety with resistance 2 A.

This product is a module with 1 solid state relay useful for medium power AC applications. The relay resists up to a voltage of 250 V, alternating current at a frequency of 50 Hz - 60 Hz. The maximum current it holds is 2 A.

State solid state relays have much smaller dimensions than normal ones with coil control. Their names are related to how they work, that they have no moving parts.

Instructions for Use

1. Connect the consumers to the mode.

It is advisable that only one consumer is connected to each channel in order not to request it.

2. Power up the module with a voltage of 5 V.

The module is powered by pins marked DC + and DC-.

CAUTION! Observe the polarity, otherwise you may damage the module.

3. Connect the module to a development board.

To control this module, you need to have a development board with at least 1 digital pin.

The control pin is marked on the PCB with CH1. If you have a consumer that uses enough current, only a pulse with logic voltage 1 is required to switch the relay on / off. If the consumer consumes too little current, the relay will not turn on and the logic voltage 1 should be maintained on the relay pin.
