Long Range nRF24L01 Module (2.4 GHz)

Overview

This is a long-range 2.4 GHz transceiver based on the NRF24L01+ chip, with onboard power amplifier (PA) and onboard low noise amplifier (LNA). With its external antenna, it features a range of up to 1100 meters. It has the same interface as nRF24L01+ wireless module making it ideal as a replacement if you want to get a higher communication range for your project with minimal modifications.

This module is also great for use in wireless peripherals, remote controls, home automation, commercial automation and more.

NRF24L01P+PA+LNA is a high-power and high-sensitivity wireless data transmission module specially developed by our company for ultra-long-distance data transmission. The NRF24L01P+PA+LNA wireless module works in the license-free 2.4G ISM frequency band and can be used in point-to-point applications. It can also form a star network.

The core of the NRF24L01P+PA+LNA wireless module is the Norwegian company NORDIC. The new high-performance wireless data transmission chip NRF24L01+, in conjunction with our professional design, adds high-power PA and LNA chips, radio frequency switches, Bandpass filters, etc. form a professional full two-way RF power amplifier, which greatly expands the effective communication distance.

In the radio frequency part, the company has done a lot of optimization matching and debugging, so that the transmission efficiency is high, harmonics are small, so that the radio frequency interference of the NRF24L01P+PA+LNA wireless module to external equipment is low, and it is not easy to be affected by others. jamming equipment, greatly raise high stability work.

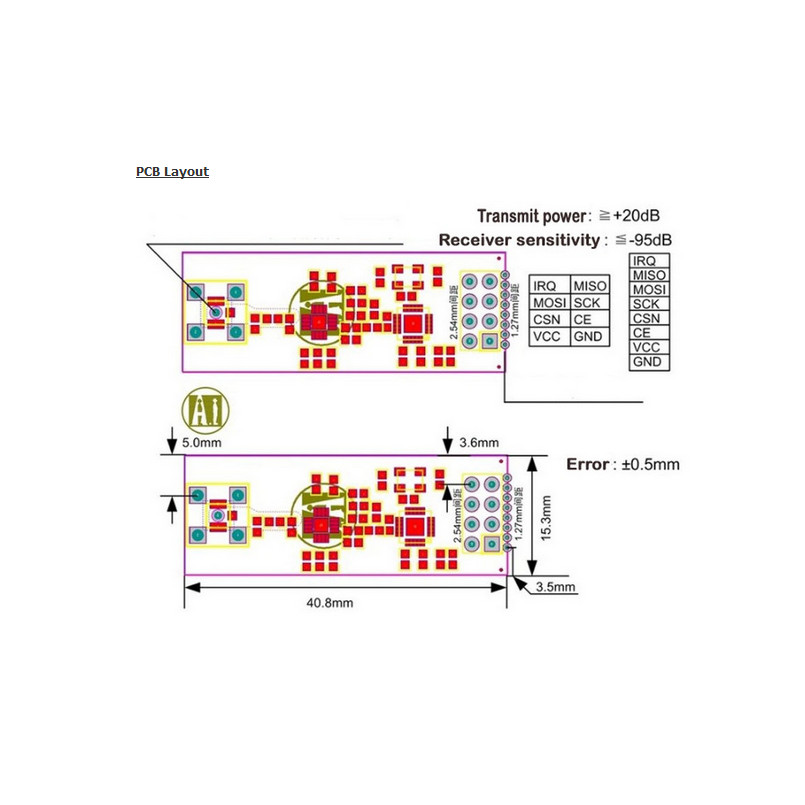

The NRF24L01P+PA+LNA wireless module is highly integrated, and the size is only 41mm*15.5mm, which is convenient to be embedded in any product with tight space. Users only need to add an MCU to control the NRF24L01P+PA+LNA wireless module through the SPI port to complete the ultra. The design of the long-distance wireless data transmission system eliminates the need to worry about the R&D of the radio frequency part at all , greatly reducing R&D expenses and shortening the R&D cycle.

Specifications

• Power Supply Range: 1.9 V to 3.6 V
• Operating Temperature Range: -20° C to +70° C
• Sensitivity at 2 Mbps: -92 dBm
• Sensitivity at 1 Mbps: -95 dBm
• Sensitivity at 250 kbps: -95 dBm
• PA Gain: 20 dB
• LNA Gain: 10 dB
