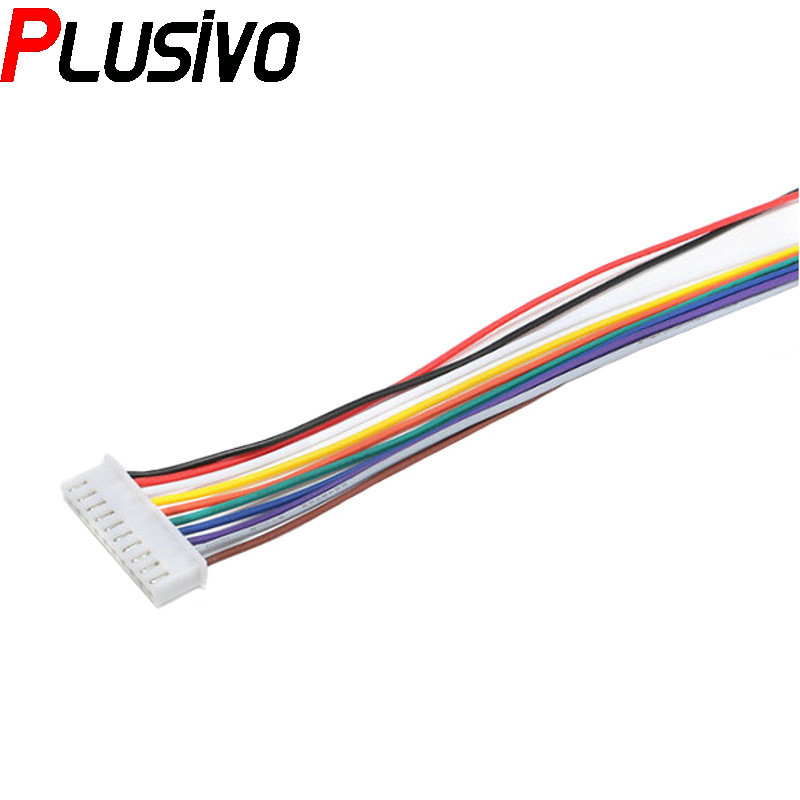

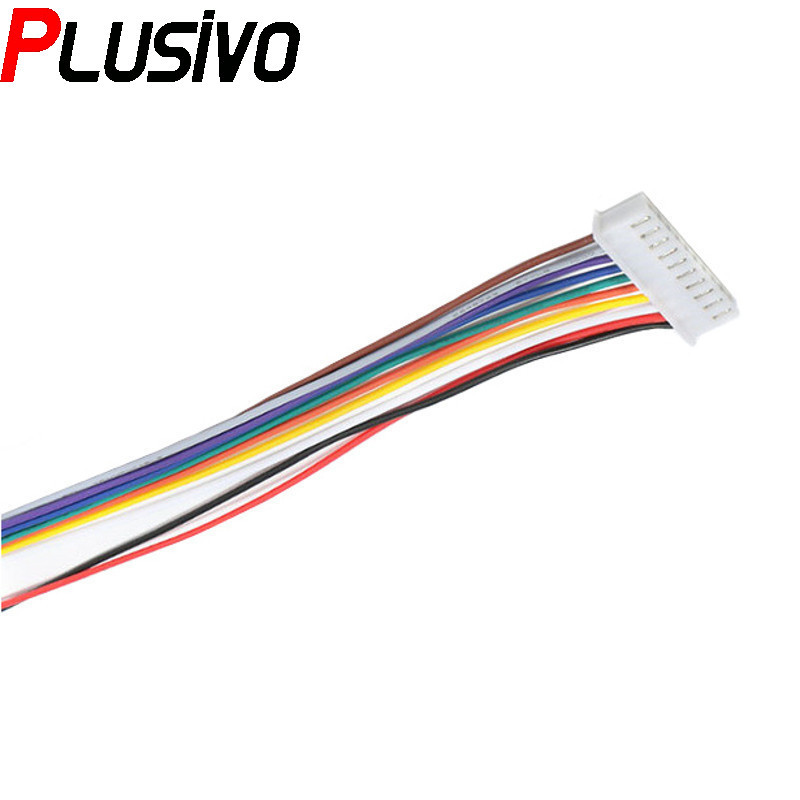

10p XH2.54 Colored Single Head Cable (20 cm)

Specifications

• Pitch: 2.5mm

• Poles: 2-16

• Usable wire range: AWG30 # -22 #

• Applicable printed board thickness: 0.8-1.6mm

• Voltage rating: 250V AC / DC

• Current rating: 3A AC / DC

• Working temperature: -25 ^oC- + 85 ^oC

• Withstand voltage: 1000V / min

• Contact resistance: <0.02O

• Insulation resistance:> 1000MO

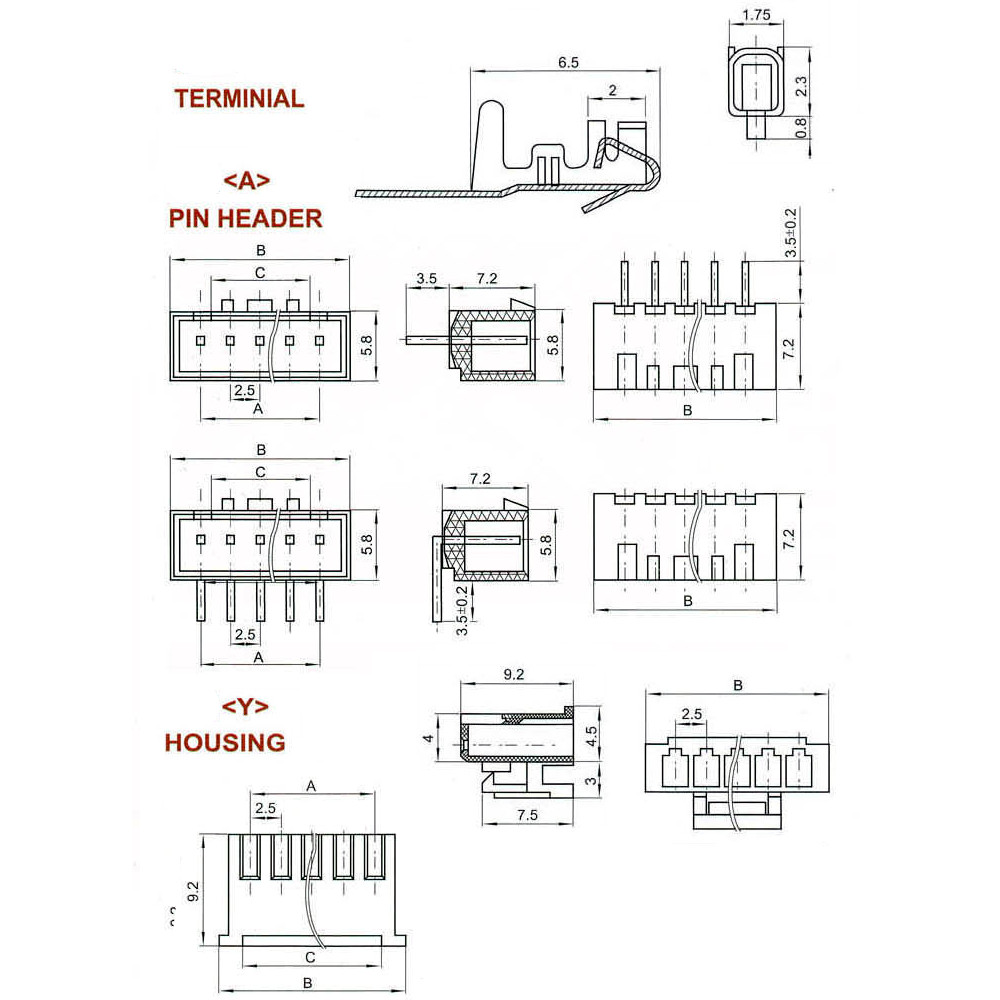

Materials

Housing: Nylon 66

Pin header:

1. Water: Nylon 66

2. Pin: Brass

Terminal: Phosphor bronze
