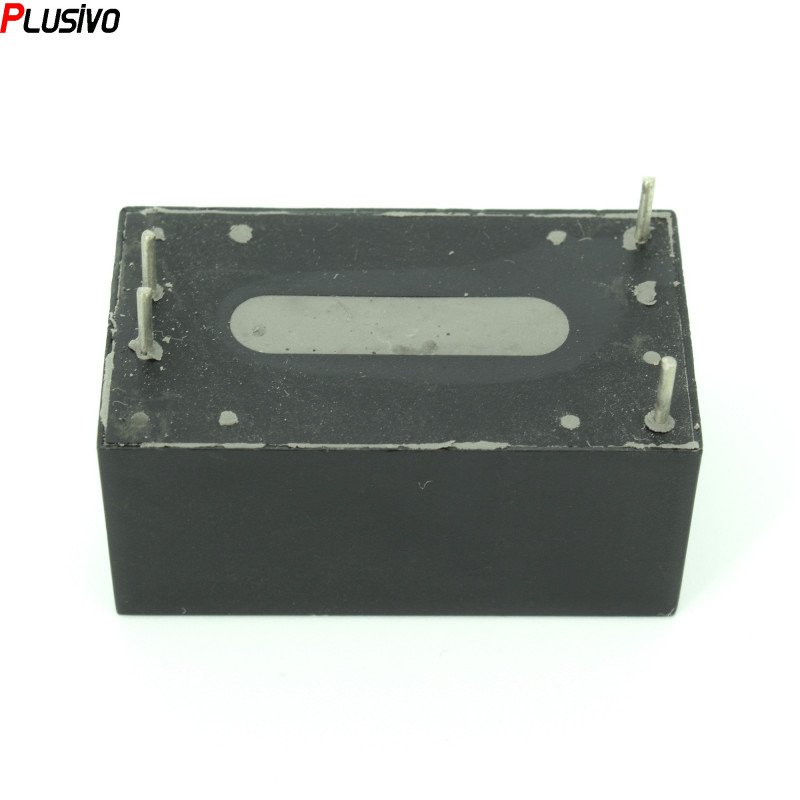

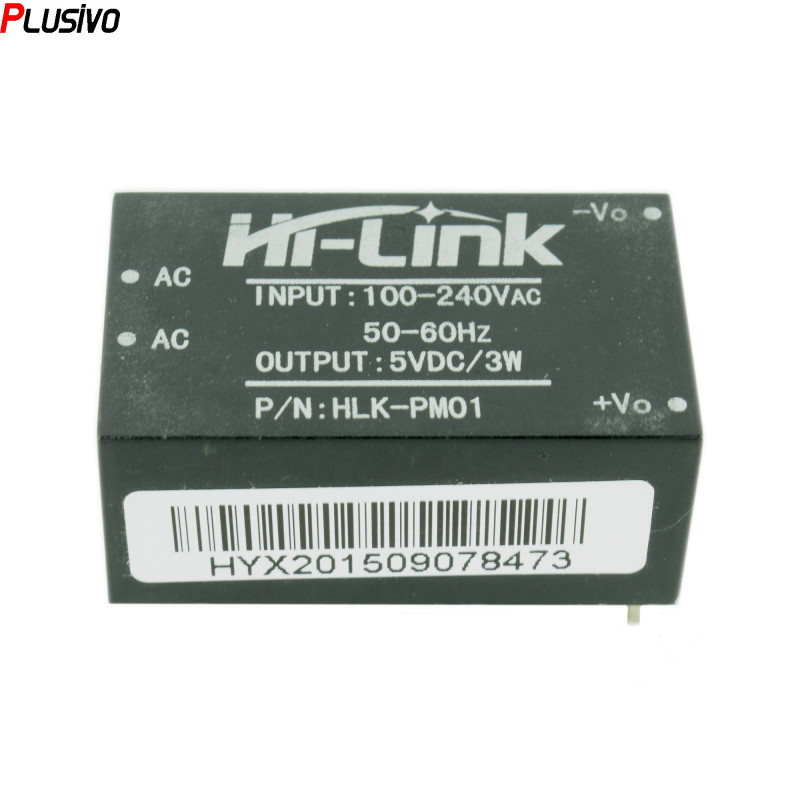

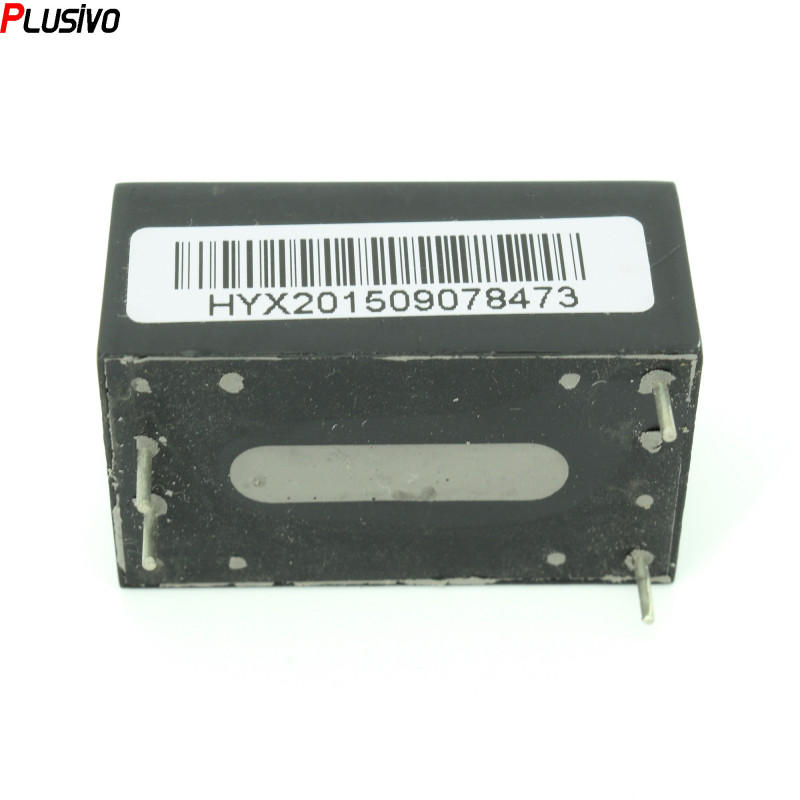

HLK-PM01 Ultra Compact Power Supply Module

Overview

This voltage source is a switching source, so you do not have to worry about fluctuations in voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take.

Specifications

• Power Supply: 90 VAC to 264 VAC, 50 / 60 Hz
• Required Current Supply: 0.2 A (MAX)
• Output Voltage: 5 V
• Output Current: 600 mA
• Power: 3 W
• Ripple: 50 mV (MAX)
• Efficiency: 70%

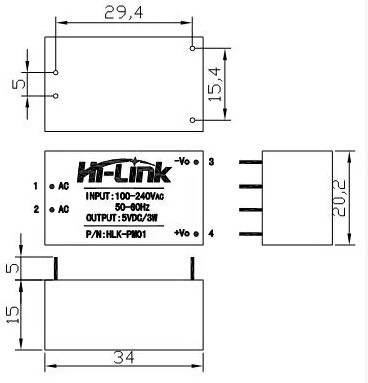

• Dimensions: 1.5 cm x 3.4 cm
