SOP8, SSOP8 and TSSOP8 to DIP PCB Adapter

The product is an adapter from SOP8, SSOP8 and TSSOP8 capsules to DIP. This is useful when you have a SOP/SSOP/TSSOP-only IC and haven't decided what connections you need yet. Using this adapter and a breadboard, you can do tests.

Dimensions: 12mm x 12mm.

The distance between the pins of the pinheaders is 2.54mm, and between the pads from the SOP and SSOP/TSSOP capsule of 0.65mm and 1.27mm, respectively, these being the standard dimensions.

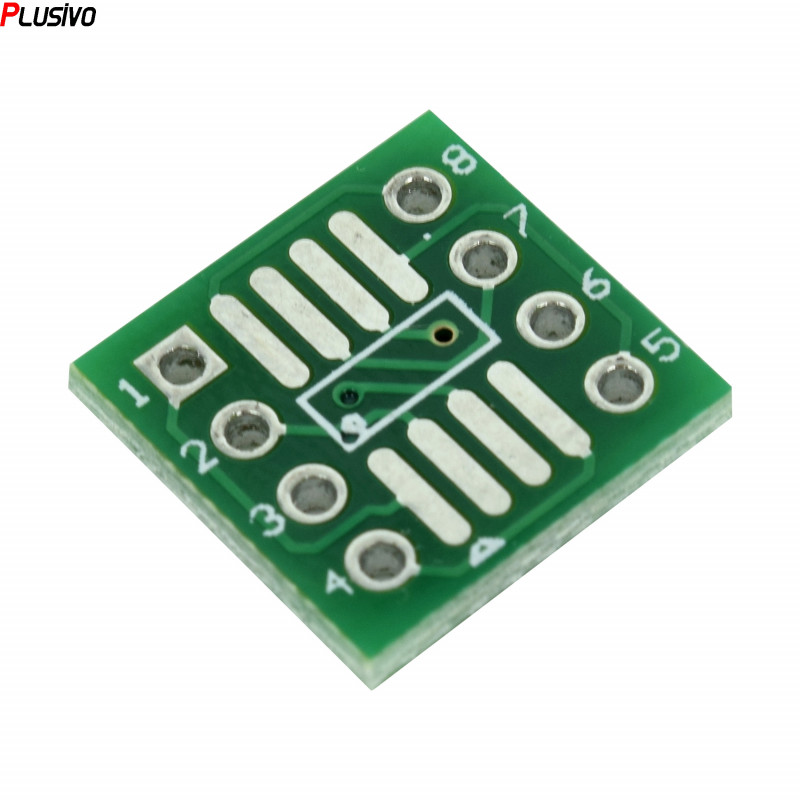

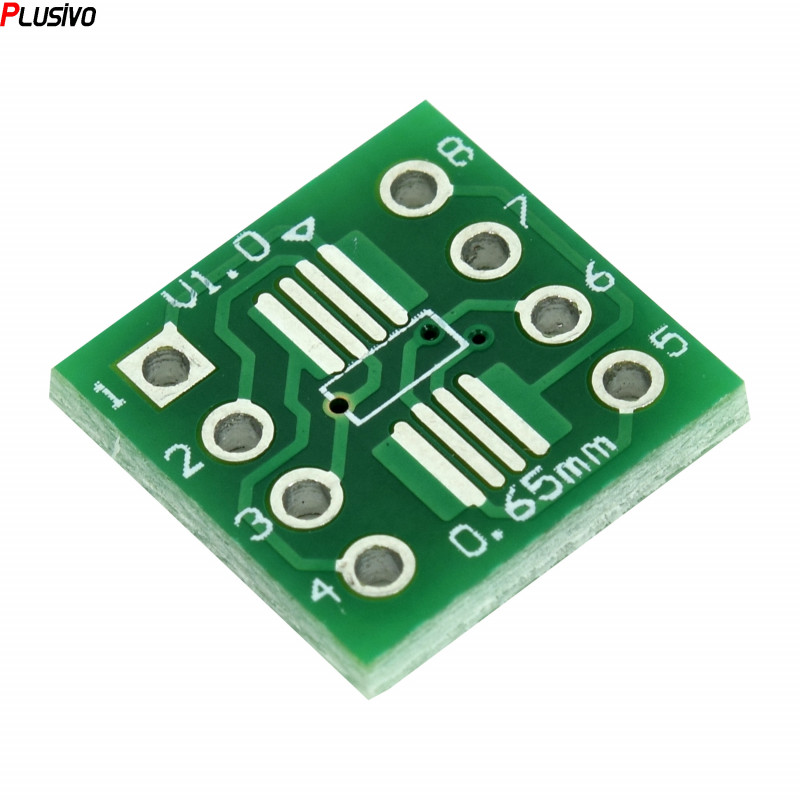

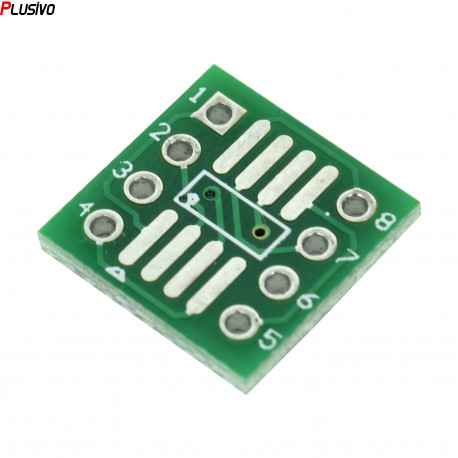

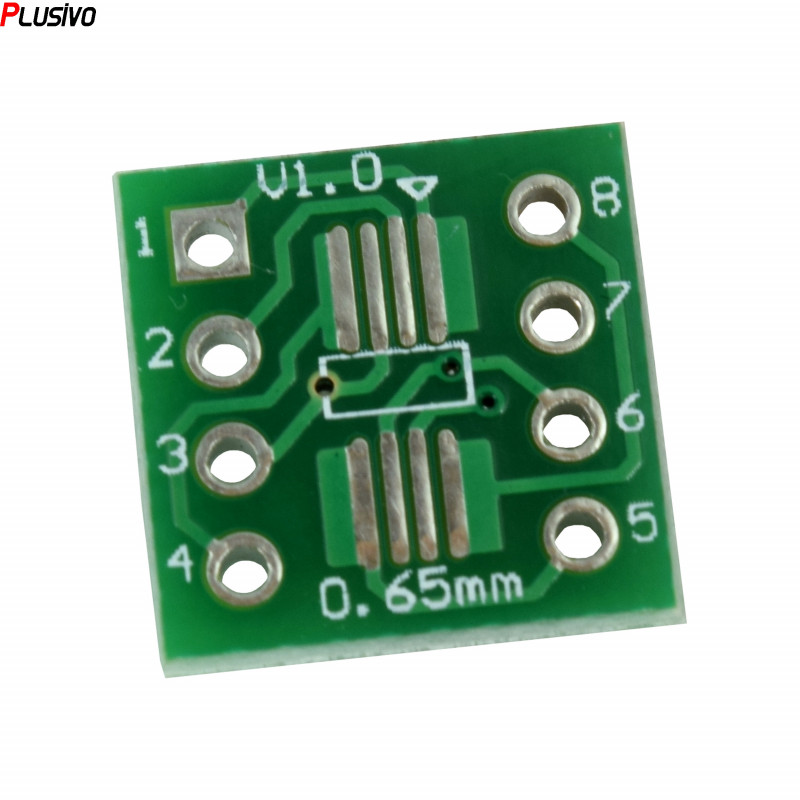

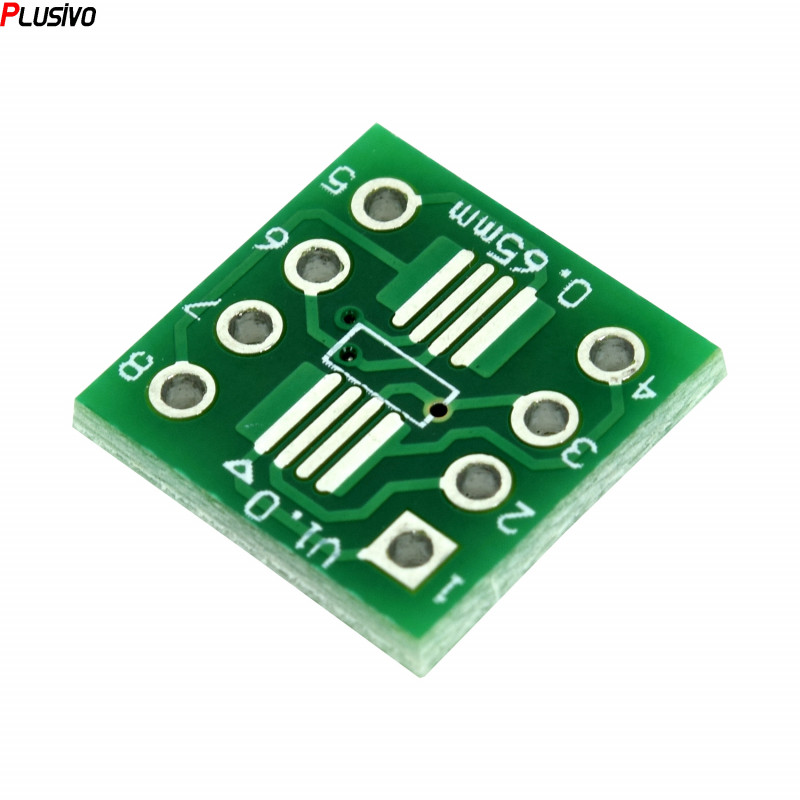

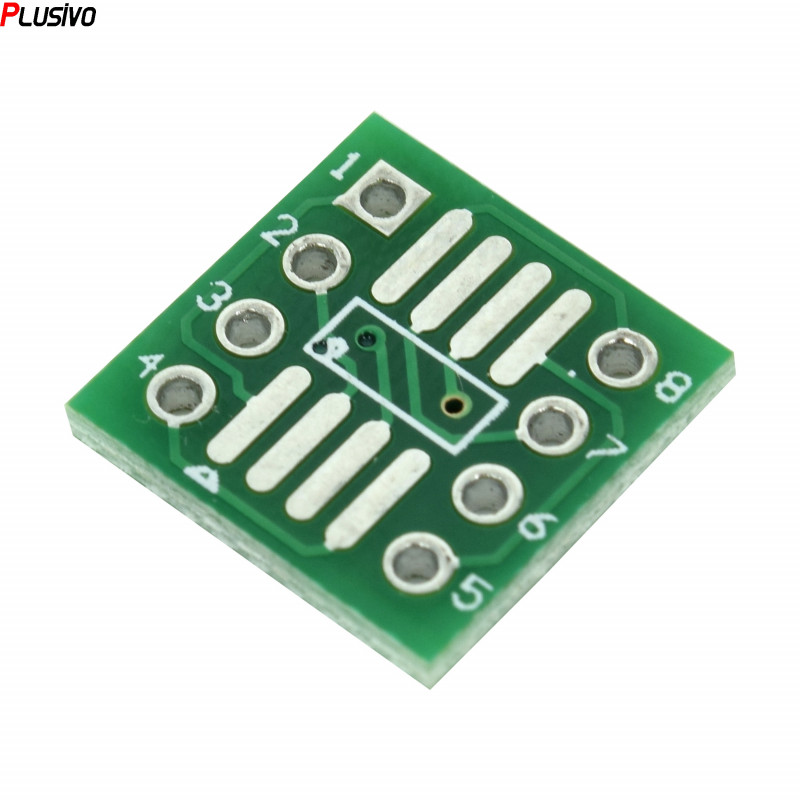

The PCB is a double layer one, with SOP capsules on one side and TSSOP/SSOP on the other.
